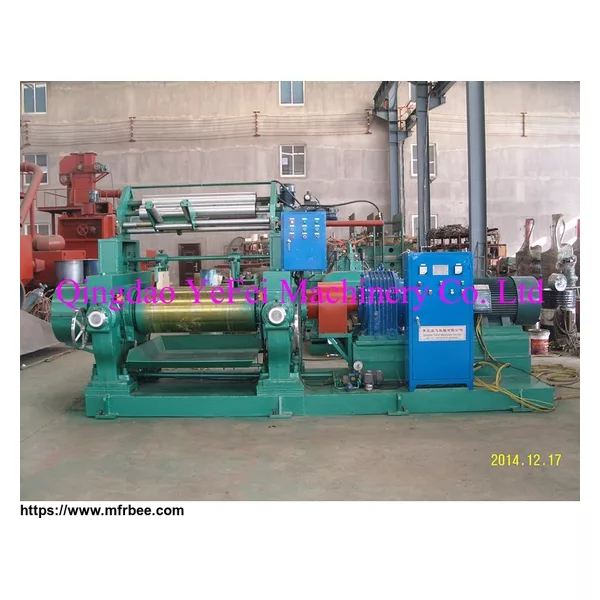

High Technology Open Mixing Mill / Banbury Mixing Mill

Features:

1.The roller is made of chilled cast iron. It is divided into hollowed roll and drilled roll. The inner of hollowed roll is machined. The hollowed roll surface can be smooth or grooved. The grooved roll has full grooved surface, partial grooved surface and so on.

2.The roll is supported by roller bearing so it has low noise and long service life.

3.The roll bearing adopts grease lubricating and oil lubricating.

4.The pressure transducer system is available for directly displaying the working pressure and control the feed. When over pressure, it will automatically stops and save or print the pressure value.

5.The product is complied with nation-established safety standard (this standard is identical with Europe standard.)hnical Parameters

Type	Xk-160	Xk-250	Xk-300	Xk-400	Xk-450	Xk-560	Xk-660
Working diameter of rolls(mm)	160	250	300	400	450	560	660
Working length of rolls(mm)	320	620	750	1000	1200	1530	2130
Front roll surface speed(m/min)	8.95	14.1	15.1	18.65	24.26	27.72	28.6
Friction ratio	1:1.35	1:1.17	1:1.27	1:1.27	1:1.27	1:1.2	1:1.24
Max.nip(mm)	4.5	8	8	10	15	15	15
Capacity per.batch(kg)	1-2	8-15	15-20	18-35	25-50	35-50	165
Motor power (kw)	5.5	18.5	22	37	55	90	245
Overall dimension(mm	1380860 1320	34001500 1800	35801550 1695	43501850 1785	52002380 1840	58452284 1978	74653662 2080
