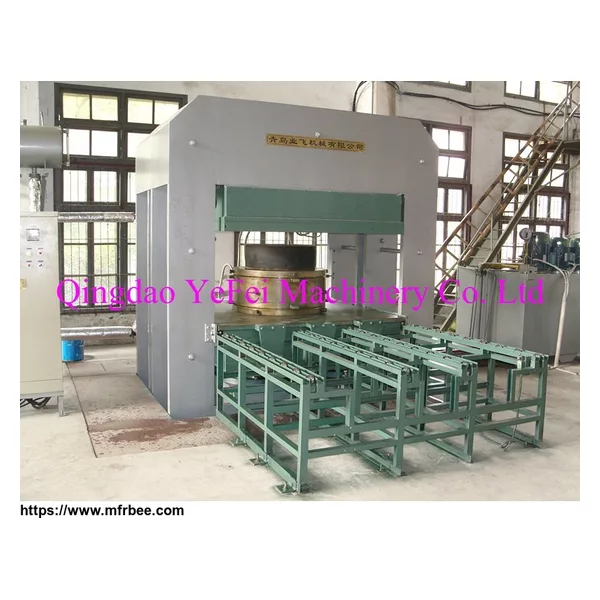

Qingdao Larger Bridge Shock Mount Vulcanizing Machine
Product sourcing details
- FOB Price
- USD $50,000.00 / Piece
- Minimum Order
- 1
- Place Of Origin
- China (Mainland)
- Packaging
- 1Set each Mood Box
- Delivery
- 30 Days
Specifications
Qingdao Larger Bridge Shock Mount Vulcanizing Machine
①Automatic pushing out moldboard,hydraulic compels synchronization device,it is special curing equipment for
a large rubber parts .
②Frame type,The material of master cylinder is QT500··7,The material of piston is Chilled alloy cast iron,high
strength, good wearability.
③PLC,hydraulic and electric combined intelligent control,automatic intelligent constant temperature,curing pressure and curing time is adjustable.Control way is hand control and automatic control.
④ The hydraulic oil cylinder driving, deep groove ball rolling bearing loading, the action of pushing out is stable,
smooth,decrease the load.
| Type | XLB-Q1500*1500 | XLB-Q2200*2200 | XLB-Q2500*2500 | XLB-Q3000*3000 |
| Mouldclosing Force(MN) | 1600T | 2000T/2500T | 3000T | 4400T |
| Plate Size(mm) | 1500*1500 | 2200*2200 | 2500*2500 | 3000*3000 |
| Working Layers | 1 | 1 | 1 | 1 |
| Plunger Diameter(mm) | 560x4 | 630x4 | 700x4 | 800x4 |
| Maximum Plunger Stroke(mm) | 600 | 600 | 600 | 600 |
| Daylight opening(mm) | 500 | 600 | 800 | 800 |
| Pump Power(kW) | 22x2/7.5x2 | 22x2/7.5x2 | 22x2/7.5x2 | 22x2/7.5x2 |
| Close Mould Speed(mm/s) | 15 | 13 | 15 | 13 |
| Open Mould Speed(mm/s) | 10 | 10 | 10 | 8 |
- Company: Qingdao Yefei Machinery Co.,LTD
- Country: China (Mainland)
- Business Type: Manufacturer
- Market: Asia,Africa,Middle East
- Founded Year: 2005
- Contact: Jerry Zhao
