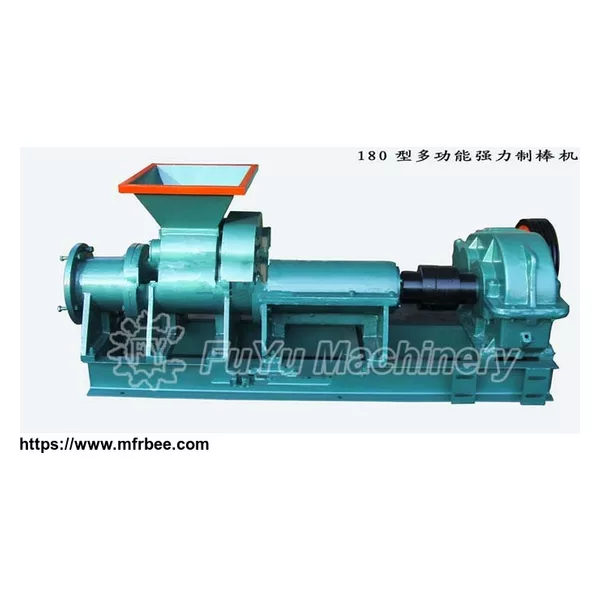

TF-180 coal rods extruder from factory
Product sourcing details
- Place of Origin
- China
- Capacity
- 2-3t/h
- Spindle Speed
- 39-60Rev/min
- Packaging
- 40'GP
Supplier: Gongyi City Fuyu Machinery Co.,Ltd
Purchasing information
- Model / reference
- TF-180
- Minimum order
- 1
- Lead time
- 30 Days
Please confirm with the supplier: Key specifications / compatibility, Samples, Export markets, Supply capacity.
Specifications
Working Principle
Coal rods machine is a machine tool for the different shape of the powder coal. Its working principle is: the motor through the triangle belt transmission to the transmission, the transmission output shaft through the floating coupling to push the propulsion shaft, the propulsion shaft to promote the coal feed through the forming die, and then give birth to an ideal high pressure coal rod.
Structure Features
1.The feed screw leads to large, feed into the material quickly, and promote the small, the province power.
2.Shaft block with the use of rigid connection, high degree of resistance, anti - thrust, machine stability
3.The need to seal the use of fault structure, the dirt from the fault
4.Triangle belt drive, smooth operation, low noise, and its overload protection
5.The head and cylinder are connected with the card ring structure and the structure of the bolt.
Technical Parameters
Model: TF-180
Capacity: 2-3t/h
Molding Specification: Dia20-60
Spindle Speed: 39-60Rev/min
Helical Blade Number: 4
Electric Machinery: 18.5kw, 22kw
Reducer: ZQ400
Bearing: 7511,211,210,1305
Remarks: The spindle speed is the lowest speed, according to the current size of the load weight. Yield increase.
Coal rods machine is a machine tool for the different shape of the powder coal. Its working principle is: the motor through the triangle belt transmission to the transmission, the transmission output shaft through the floating coupling to push the propulsion shaft, the propulsion shaft to promote the coal feed through the forming die, and then give birth to an ideal high pressure coal rod.
Structure Features
1.The feed screw leads to large, feed into the material quickly, and promote the small, the province power.
2.Shaft block with the use of rigid connection, high degree of resistance, anti - thrust, machine stability
3.The need to seal the use of fault structure, the dirt from the fault
4.Triangle belt drive, smooth operation, low noise, and its overload protection
5.The head and cylinder are connected with the card ring structure and the structure of the bolt.
Technical Parameters
Model: TF-180
Capacity: 2-3t/h
Molding Specification: Dia20-60
Spindle Speed: 39-60Rev/min
Helical Blade Number: 4
Electric Machinery: 18.5kw, 22kw
Reducer: ZQ400
Bearing: 7511,211,210,1305
Remarks: The spindle speed is the lowest speed, according to the current size of the load weight. Yield increase.
- Company: Gongyi City Fuyu Machinery Co.,Ltd
- Country: China (Mainland)
- Business Type: Manufacturer
- Market: Africa,Americas,Asia,Emerging Markets,Europe,European Union,G20,Middle East,Oceania
- Founded Year: 1993
- Address: Xiaoyi industry district, Gongyi city, Henan Province
- Contact: Holly Hou
