High quality Hydraulic Program Paper Cutting Machine

Place Of Origin
China (Mainland)
Minimum Order
1
Packaging
N/A
Delivery
15 Days

Ruicai Electron is one Chinese company, mainly manufacture paper cutting machine, creasing machine, perfect binding machine, roll laminator and related office and graphic machinery. We can provide one-stop solution to our customers all over the world. Please dont hesitate to contact us if you interest. Welcome to contact us by mail or Skype or from our website: ruicaichina(dot)com

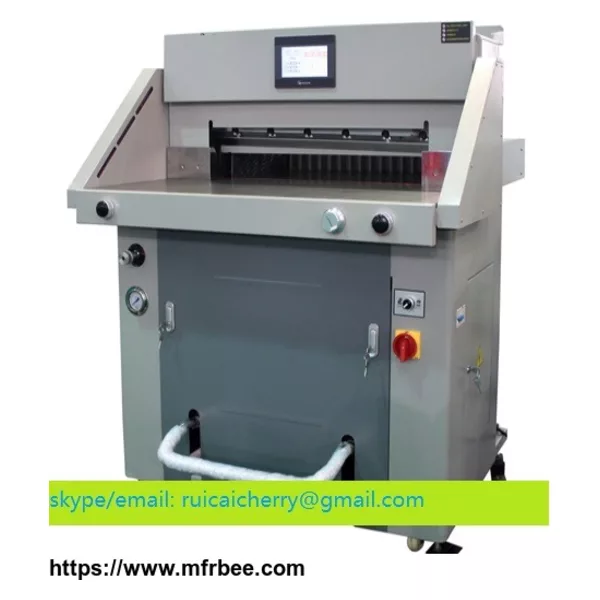

Hydraulic Programmed Paper Cutting Machine
Mode H670RT
Max Cutting Size 670mm
Max Cutting Thickness 80mm
Min Cutting Size 30mm
Cutting Precise ±0.2mm
Pushing Paper Programmable
Pressing Paper Hydraulic + Mechanical Pedal
Display Touch Screen
Programmed Yes
Power 220v/110v±10% 50Hz(60Hz)2.5kw
Machine Weight 450kgs
Packing Size 1400*1150*1460mm
Characteristics
1. Double lead screws and ball screws for pushing paper

Double lead screws and ball screws for pushing paper platform without slot design, to make the pushing force more equal and durable, It matches up the servo motor control design, cutting precision is better, and increasing the speed of pushing paper.

2. Swing arm design of blade carrier patented technology
The design makes the roller slot not easy to wear and tear, and can adjust the gap of blade carrier to ensure cutting accuracy.

3. Inclined blade cutting patented technology
Any thick paper can be cut smooth and easily with inclined blade design.

4. Leak-Proof design
Make the cylinder in the state of seal and is no any leak.

5. Double hydraulic with strong power system
Taiwan motor with strong power, imported hydraulic components for ensuring quality, with external knob to adjust pressure of paper clamp.

6. 7'' large LCD touch screen
The cutting depth and size calibration can be adjusted by setting the program, 100 series programs and 96 cuts for each series programs. Humanization design makes the operation easier and more convenient.

7. Taida PLC control board design
(1) It is easy to use and simple to program
(2)It has anti-interference ability and reliability.
(3) and easy to replace

8. Plate with Aluminum hard anodizing process
The new aluminum panels, are light smoothed and wearable.

9. Mechanical pedal
Pressure paper proofread position,easy and convenient.

10. Type 4 IR

The type 4 IR with high safety factor, according to CE.
