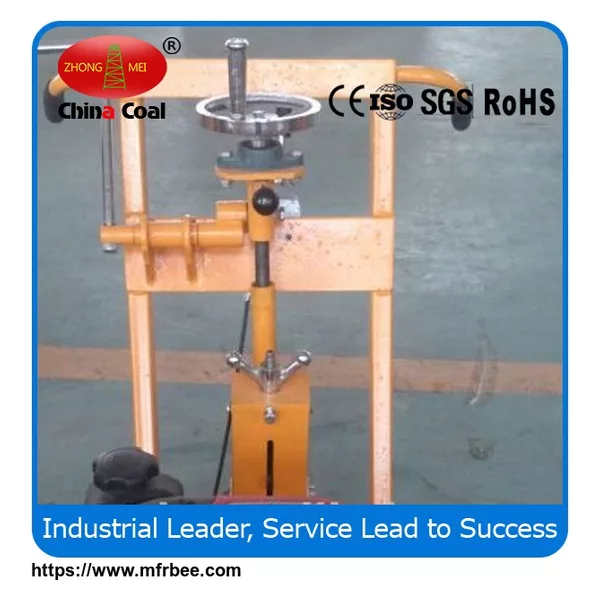

Fusing and Cold Paint Marking Cleaning Machine

chinacoal07:cold paint marking cleaning machine,line marking machine,marking machine
Product Introduction
The design concept of the product and first-class manufacturing process, the principle of plane centripetal
force on grinding. Activities of the cutting tools on the knife shaft, generated by high speed rotating centrifugal

force, maul cleared marking the surface of the cutting tools, to achieve clear. Its advantage is: contact with
processed surface hardness of the cutting tools, and little damage on the surface processing, mainly used in
hot-melt cold paint marking cleanup of the old line, has the characteristics of high efficiency, low damage and easy maintenance.X900 of
hot melt line segment, segment touches the ground width is 220 mm, if clear ed after covering the old line, by adjusting the depth,
the damage of road surface is small, clear surface level
l off, hot melt covers good each other, form a perfect, after the province; If need to change, need to increase
removal depth, the line can be removed.
Technical parameters
Power 9.0 HP HONDA (HONDA) gasoline engine
Speed 3600 r/min
Driver can walk by themselves
Working width 220 mm
The grinding depth 0-4 mm
Remove speed 500-700 m2 / day
Life of the cutting tools 80 and 2000-3000 m2
Knife drum shaft rod number 4 axis
Size 500 * 600 * 1000 mm
Turning 110 kg
