Two Level 2 Post Tilt Parking Lift

Minimum Order
1
Packaging
N/A
Delivery
15 Days

mini car lift for home garage

Chinacoal07 mini car lift for home garage,mini car lift , car lift

Specifications

Auto Lift
1.CE and ISO9001
2.Reliable quality and after-sales service

1. Safe and anti-explosion oil cylinder

2. Spray the surface treatment, corrosion resistance

3. Dual cylinders with USA parker seals

4. Column using the original high-quality flat-panel, non-stress and deformation

5. pumping station with CE certification

Technical Parameters

Lifting capacity 4500Kg (10000lbs)
Post Height 3810mm
Car max lifting height 1900mm
Minimum height 120mm
Clearance between posts 2840mm-3170mm
Total width 3790mm
Width of post material 5mm
Long arm maximum length 1469mm
Long arm minimum length 759mm
Short arm maximum length 1262mm
Short arm minimum length 682mm
Lifting Time 50s
Lowering Time 30s
Power Supply Voltage 220V/380V ,1ph/3ph
  • Country: China (Mainland)
  • Business Type: Trading Company,Manufacturer
  • Market:Europe
  • Founded Year:2001
  • Address:
  • Contact:mike jiang

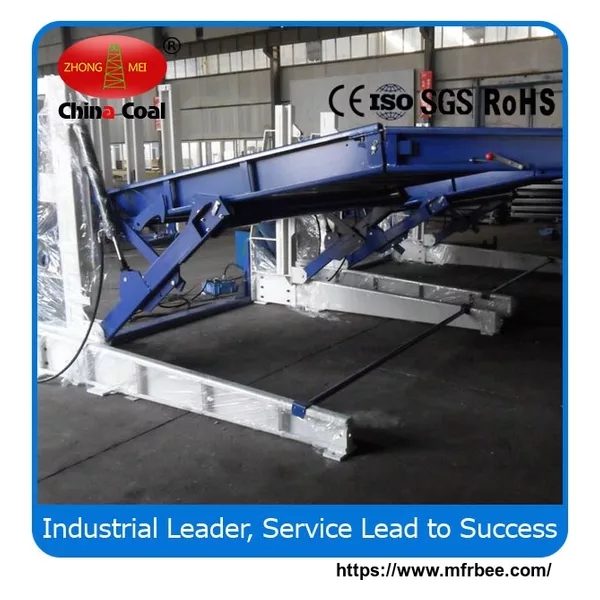

more images of Two Level 2 Post Tilt Parking Lift
