Furnace Scraps Handling Magnetic Chuck
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Round Magnet of High Quality,Handling Magnetic Chuck,Magnetic Chuck
Introduction: chinacoal10

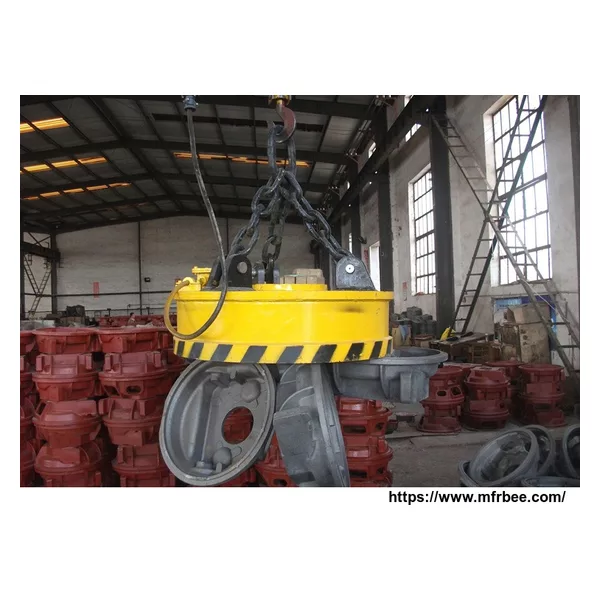

Magnetic chuck is designed to lift and move cast ingots, scraps,steel ball, sheets, bars and scrap of ferromagnetic materials. The chuck is to be attached to cranes, excavator, and other hoisting machines at metallurgical plants, scrap yards and ship-building plants.
| High temperature type(The attached material is below 700 centigrade;Rated voltage DC-220V;Power-on sustaining rate TD-60%) | |||||||||||
| Model | Electric current (A) | Cold-state power (kw) | lifting capacity (kg) cold/hot state | Mass (kg) | Overall dimension (mm) | ||||||
| steel ball | cast iron | steel scrap | A | B | C | D | E | ||||
| MW5-70L/2 | 12.77 | 2.8 | 2500 | 380/200 | 120/100 | 520 | 700 | 820 | 160 | 90 | 30 |
| MW5-80L/2 | 16.1 | 3.54 | 3000 | 480/250 | 150/300 | 650 | 800 | 820 | 160 | 90 | 30 |
- Country: China (Mainland)
- Business Type:
- Market:
- Founded Year:2012
- Address:
- Contact:anne zhang
