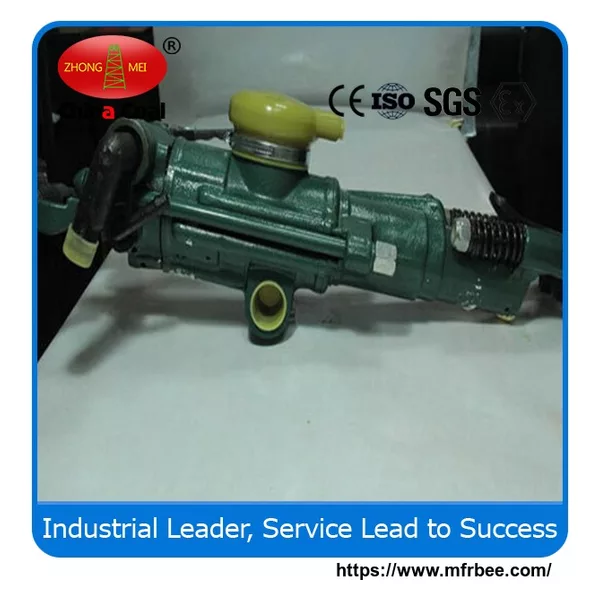

Y19A Pneumatic Rock Drill

Minimum Order
1
Packaging
N/A
Delivery
15 Days

Y19A Pneumatic Rock Drill

chinacoal07 :hand-held type pneumatic rock drill; pneumatic rock drill

Product Introduction

1. The machine is mainly used in small quarries,small coal mines and limestone mines for drilling,blasting for constructing roads in mountain areas,also in the capital construction for water conservancy works.

2. it is suitable for drilling works in large mines for boulder blasting and other projects as well.

3. When it is matched with air- leg model FT100,it can perform both dry and wet drilling under various kinds of rocks,and it is even more flexible in drilling operation

4. when matched with the small- size compressor of capacity of 1.5m3,the function will be better than others.

5. The flanged control valve is adopted,so it has many advantages such as reasonable in structure,quick in starting ,light in weight ,fast drilling speed,lower air consumption,smaller vibration,easier operation,lower trouble rate,long-life parts,good economic effect.

6. It is also equipped with a rubber damping handle,so is easy to operate and provide the operators with necessary working protection.

Technical Parameters

products specifications
item name Y19A
Weight 19kg
Overall dimensions 600×534×157mm
Stoke 54mm
Cylinder Dia 65 mm
Air pressure 0.4-0.5mpa
Water pressure 0.2-0.3mpa
Impact energy 40J
Torque (at0.4MPa)
Impact frequency >28-35Hz
Air consumption 37-43L/S
Drilling speed 180mm
Max drilling depth >6m
Air pipe inside dia 19mm
Water pipe inside dia 13mm
Drill bit size 32-42mm
Shank size H22X108mm
  • Country: China (Mainland)
  • Business Type: Trading Company,Manufacturer
  • Market:Europe
  • Founded Year:2001
  • Address:
  • Contact:mike jiang
