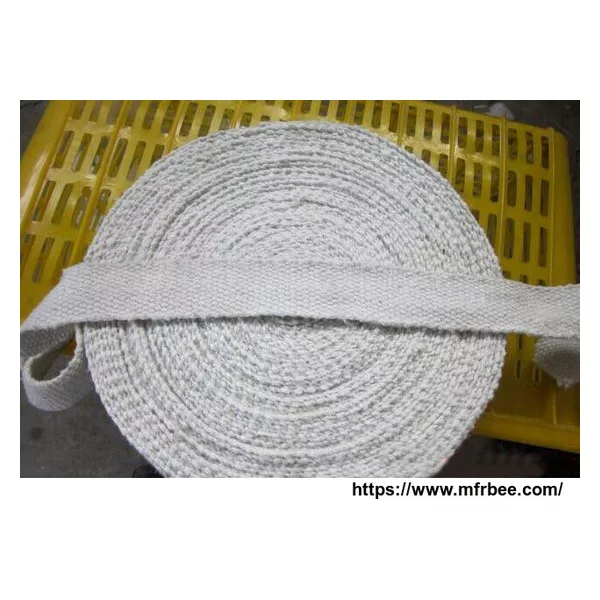

Ceramic Fiber Tape
Product sourcing details
- Place of Origin
- China
- Packaging
- in wooden case
Supplier: Henan JK Industry Co.,Ltd
Purchasing information
- Minimum order
- 1
- Lead time
- 15 Days
Please confirm with the supplier: Model / reference, Key specifications / compatibility, Samples, Export markets, Supply capacity.
Specifications
1260 ceramic fiber tape is a cost-effective insulating tape made from ceramic fiber yarn, reinforced by a core of glass filament or stainless steel wire for high strength retention at elevated temperatures, ideal for most high temperature applications up to 1260C.
1430 tape is a high performance industrial tape made from Zirconia grade ceramic fiber yarn, reinforced by high temperature alloy wire. It is durable, long-lasting product, ideal for high temperature applications up to 1430C. Our tape contains approximately 18% organic fiber which burns out at high temperatures, causing some smoking and outgassing, but the tape retains enough strength to be used as effective insulating cloth at high temperatures.
Ceramic Fiber Tape Characteristic:
- Low thermal conductivity
- Resistance to high temperature and chemical attack
- High mechanical strength
- Good thermal shock resistance
- Asbestos free
Ceramic Fiber Tape Technical Data:
Ceramic fiber tape is made from ceramic fiber yarn reinforced glass fiber or stainless steel wire.
Ceramic Fiber Tape Standard Sizes:
1. Thickness: 1.5, 2, 2.5, 3, 5, 6, 8,10mm
2. Width: 10-750mm
3. Ladder tape available upon request
Ceramic Fiber Tape Advantage:
-Lightweight and low thermal conductivity
-Excellent insulation at high temperature
-Resists corrosive chemicals, commonly used acid and alkali
-Strong and abrasive. It can be used in tough environment
-Good substitute of asbestos products in many insulation and sealing applications.
-Reinforcing material: glass fiber wire, stainless steel wire
Ceramic Fiber Tape Applications
-Furnace curtains
- Protection against high temperature
- High temperature electrical insulation
-Cable and fuel line protection
-Insulation of industrial chimney
- High temperature static seal e.g. door joint or gaskets for flanges
- Fire protection e.g. fires proof curtain against welding spark
- For manufacturing of safety product e.g. safety gloves or apron
- Expansion joint
- Pipe or round duct insulation lagging
- Asbestos substitute
Ceramic Fiber Tape Packing:
30m/Roll
In plastic woven bag of 20kg net each;
In carton of 20kgs net each.
1430 tape is a high performance industrial tape made from Zirconia grade ceramic fiber yarn, reinforced by high temperature alloy wire. It is durable, long-lasting product, ideal for high temperature applications up to 1430C. Our tape contains approximately 18% organic fiber which burns out at high temperatures, causing some smoking and outgassing, but the tape retains enough strength to be used as effective insulating cloth at high temperatures.
Ceramic Fiber Tape Characteristic:
- Low thermal conductivity
- Resistance to high temperature and chemical attack
- High mechanical strength
- Good thermal shock resistance
- Asbestos free
Ceramic Fiber Tape Technical Data:
Ceramic fiber tape is made from ceramic fiber yarn reinforced glass fiber or stainless steel wire.
| stainless steel wire reinforced | glass fiber reinforced | |
| Max. working temperature (°C) | 1430 | 1260 |
| Melting point (°C) | 1760 | 1760 |
| Density (kg/m3) | 350 - 600 | 350 - 600 |
| Al2O3 (%) | 46.60 | 46.60 |
Ceramic Fiber Tape Standard Sizes:
1. Thickness: 1.5, 2, 2.5, 3, 5, 6, 8,10mm
2. Width: 10-750mm
3. Ladder tape available upon request
Ceramic Fiber Tape Advantage:
-Lightweight and low thermal conductivity
-Excellent insulation at high temperature
-Resists corrosive chemicals, commonly used acid and alkali
-Strong and abrasive. It can be used in tough environment
-Good substitute of asbestos products in many insulation and sealing applications.
-Reinforcing material: glass fiber wire, stainless steel wire
Ceramic Fiber Tape Applications
-Furnace curtains
- Protection against high temperature
- High temperature electrical insulation
-Cable and fuel line protection
-Insulation of industrial chimney
- High temperature static seal e.g. door joint or gaskets for flanges
- Fire protection e.g. fires proof curtain against welding spark
- For manufacturing of safety product e.g. safety gloves or apron
- Expansion joint
- Pipe or round duct insulation lagging
- Asbestos substitute
Ceramic Fiber Tape Packing:
30m/Roll
In plastic woven bag of 20kg net each;
In carton of 20kgs net each.
