Ceramic Fiber rope
Product sourcing details
- Place of Origin
- China
- Packaging
- in wooden case
Supplier: Henan JK Industry Co.,Ltd
Purchasing information
- Minimum order
- 1
- Lead time
- 15 Days
Please confirm with the supplier: Model / reference, Key specifications / compatibility, Samples, Export markets, Supply capacity.
Specifications

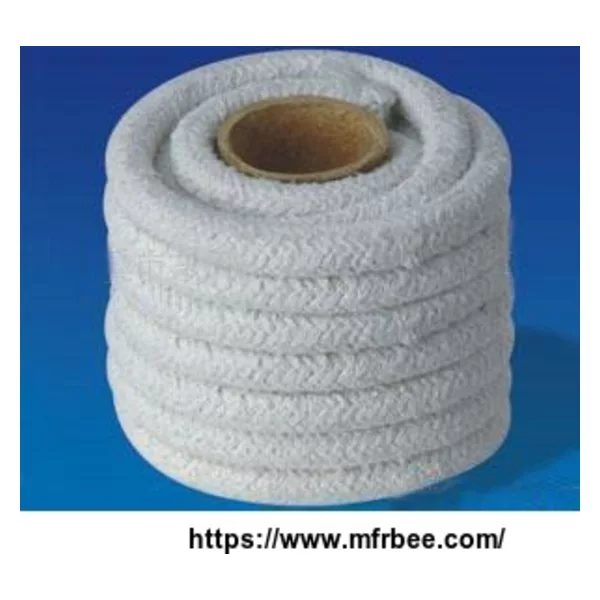

Ceramic Fiber Rope Round braided rope is dense, resilient, high performance ceramic fiber material fabricated from ceramic fiber yarn braided around a core of ceramic fiber rope to form a packing in round section. It is widely used for a broad variety of high temperature gasketing, packing and sealing application.
Ceramic Fiber Rope Square braided rope (square packing) is dense, resilient, high performance ceramic fiber material plaited from E-glass, stainless steel wire or high temperature alloy wire inserted ceramic fiber yarn to form a packing in square section.
Twisted rope is fabricated from ceramic fiber yarn twisted left hand/right hand together to form a rope of specified diameters ranging from 3 mm to 50 mm, with glass filament, stainless steel wire or high temperature alloy wire inserted to provide high strength at elevated temperature.
Feature:
1.Low thermal conductivity
2.Low heat tolerance
3.Excellent high temperature performance
4.Good thermal shock properties
Excellent high temperature insulation performance
Long service life
Good acid, oil and water vapor corrosion
Good low-temperature and high temperature strength
Environment friendly
Easy of application
Ceramic Fiber Tape Technical data:
Ceramic Fiber Tape Standard Sizes:
1.Diameter: 3-50mm
2.Tadpole
3.Rope with rectangular section is available upon request
Ceramic Fiber Tape Application:
1.High temperature pipe insulation and sealing
2. cable insulation coating
3.coke oven opening sealing
4.pyrolyzer brick wall expansion joints
5.electric stove and bake oven’s door sealing, boiler
6.high temperature gas seals
7.flexible expansion joint connection
Ceramic Fiber Tape Package:
10kgs/roll, in plastic woven bag of 10kgs net each,
In carton of 20kgs net each.
Ceramic Fiber Rope Square braided rope (square packing) is dense, resilient, high performance ceramic fiber material plaited from E-glass, stainless steel wire or high temperature alloy wire inserted ceramic fiber yarn to form a packing in square section.
Twisted rope is fabricated from ceramic fiber yarn twisted left hand/right hand together to form a rope of specified diameters ranging from 3 mm to 50 mm, with glass filament, stainless steel wire or high temperature alloy wire inserted to provide high strength at elevated temperature.
Feature:
1.Low thermal conductivity
2.Low heat tolerance
3.Excellent high temperature performance
4.Good thermal shock properties
Excellent high temperature insulation performance
Long service life
Good acid, oil and water vapor corrosion
Good low-temperature and high temperature strength
Environment friendly
Easy of application
Ceramic Fiber Tape Technical data:
| Classification temperature | 1260 | |||
| Product | 1260 Ceramic fiber round braided rope | 1260 Ceramic fiber square braided rope | ||
| Service temperature(C) | 450 | 1000 | 450 | 1000 |
| Basic material | Ceramic fiber | Ceramic fiber | Ceramic fiber | Ceramic fiber |
| Fiberglass reinforced | stainless steel reinforced | fiberglass reinforced | stainless steel reinforced | |
| Theoretical density(kg/m3) | 500±30 | 500±30 | 500±30 | 500±30 |
| Specification(mm) | 50000/10000*25/50 | 10000*(50*50) | ||
| Moisture content(%) | ≤2 | |||
| Delivery state | Roll | |||
| Organic content(%) | ≤15 | |||
Ceramic Fiber Tape Standard Sizes:
1.Diameter: 3-50mm
2.Tadpole
3.Rope with rectangular section is available upon request
Ceramic Fiber Tape Application:
1.High temperature pipe insulation and sealing
2. cable insulation coating
3.coke oven opening sealing
4.pyrolyzer brick wall expansion joints
5.electric stove and bake oven’s door sealing, boiler
6.high temperature gas seals
7.flexible expansion joint connection
Ceramic Fiber Tape Package:
10kgs/roll, in plastic woven bag of 10kgs net each,
In carton of 20kgs net each.
