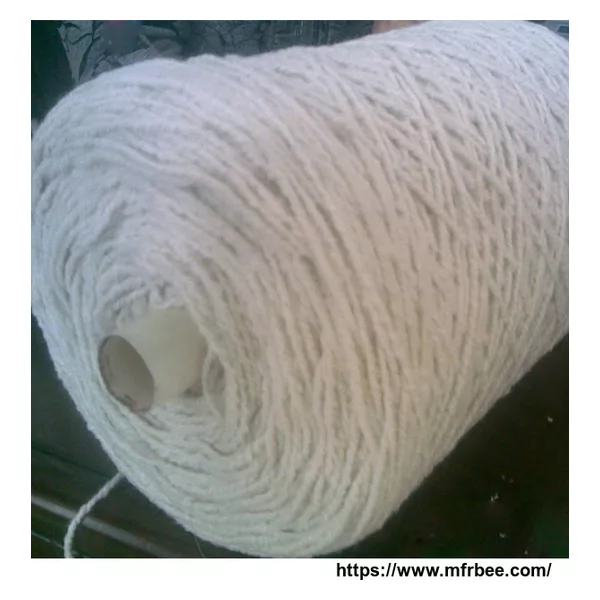

ceramic fiber yarn
Product sourcing details
- Place of Origin
- China
- Packaging
- in wooden case
Supplier: Henan JK Industry Co.,Ltd
Purchasing information
- Minimum order
- 1
- Lead time
- 15 Days
Please confirm with the supplier: Model / reference, Key specifications / compatibility, Samples, Export markets, Supply capacity.
Specifications
Ceramic Fiber Yarn, it is made from alumina-silica ceramic fiber, free of asbestos, can be used in different industrial applications under temperature up to 2300F(1260C) and has excellent chemical stability and strong resistance to thermal shock and corrosion attack. Exceptions are hydrofluoric and phosphoric acids and concentrated alkalis. It also resists oxidation and reduction, If wet by water or steam, thermal properties are completely restored upon drying. No water of hydration is present. It contains 15% organic carriers, which helps to establish physical formation of Products. The cariers burn out at about 750F(400C). It also contains reinforcement insert materials of either Inconel wire or continuous fiberglass filament to increase handling strength during installation and enhance fiber durability to rated temperture of 2000F(1093C) for inconel wire and 1200F(649C) for fiberglass filament
Characteristics
Characteristics
| TESTING ITEMS | UNIT | INDEXES |
| AL2O3 SIO2 | % | >97 |
| AL2O3 | % | >45 |
| Fe2O3 | % | 0.7~1.2 |
| CaO Na2O | % | 0.43 |
| HIGH-TEM LOSS ON IGNITION | % | <20 |
| WORKING TEMPERATURE | 650±10 | |
| MAX TEMPERATURE | 1260±10 | |
| WATER CONTENT: | % | <0.2 |
| Fiber diameter: | &mum | 2~4 |
| Thermal Shrinkage(1200,24h) | % | <3 |
| Thermal conductivity (538 ) | w/m.k | 0.130 w/m.k |
| Breakdown voltage | kv/mm | 5 kv/mm |
| Volume resistance | um | 5x1010um |
USAGE:
It is used as heat insulation materials in thermal installations and heat conducting systems, Also can be extensively made into all kinds of ceramic fiber textiles and an excellent substitute for asbestos.
