2A 8circuits 22mm diameter signal electrical Capsule Slip Ring

Description

This slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotary structure. It is also called rotary electrical interface, commutator, collector, swivel or electrical rotary joint.

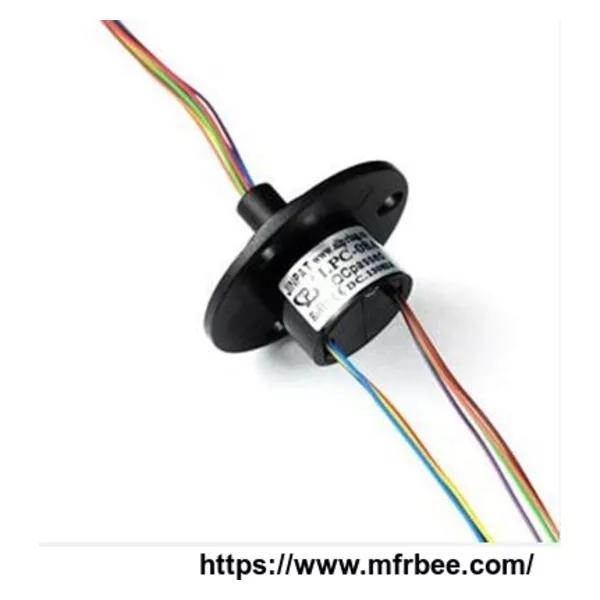

The LPC-08A capsule slip ring is a standard and off-the-shelf unit that uses gold contacts on the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.

Using a 90° V-groove ring design for each ring, the LPC-08A provides smoother running, lower torque and lower electrical noise than competitive slip rings.

Features

◆2 amps per circuit , 240 VAC/VDC

◆Gold-Gold contacts ensure long life time

◆Compatible with data bus protocols

◆Sealed units are available

◆Flexible, color-coded, silver-plated lead wires

◆Transferring analog and digital signals

◆Mounting flange on the housing

Advantage

◆Low torque minimizes system torque budget

◆Compact package.

◆Smooth running

◆Low electrical noise

◆Prompt shipment per your urgent requirement

◆360°continuous rotation

◆High bandwidth transfer capability

◆Addition of special components

◆Working speed would be up to 300rpm or higher

◆Transfer analoge and digital signals

MainApplication

◆Electrical test equipment

◆Manufacturing and process control equipment

◆Indexing tables and Mini cable reels

◆CCTV pan / tilt camera mounts

◆Robotics, rotary sensors, urgent illumination equipment

◆Exhibit / display equipment

◆Aviation ,military ,instrument, medical equipment.

◆Min-type wire-rolling machine

◆Closed-circuit control

◆Laboratory equipment

◆The operating life ≥50,000,000 runs ref.

LPC-08A Outside Drawing
