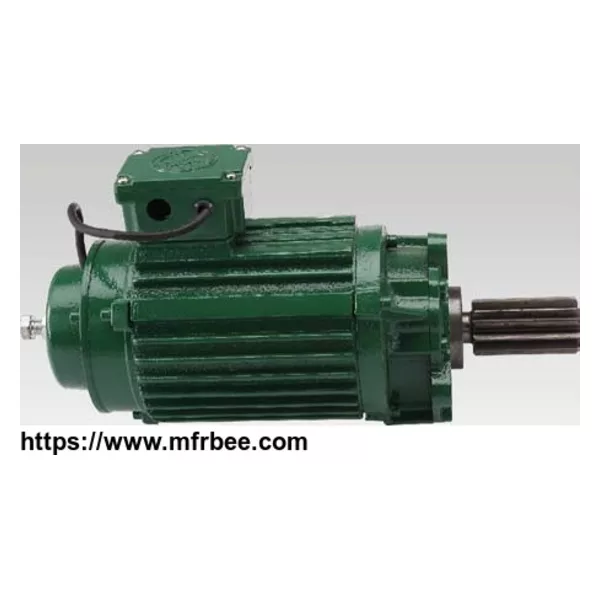

Crane Geared Motor
Product Quick Detail
- Minimum Order
- 1
- FOB Price
- USD $500.00 / Piece
- Place Of Origin
- china
- Packaging
- Plywood case
- Delivery
- 15 Days
Specifications
Features
- Small Volume with Compact Unitive Whole Part
- High Torque and Output Power Stronger
- Easy Heat Dissipation
- Low noise and vibration, Soft Start and Soft Stop
- High performance and Sensitive Steady
- Close, precise gear ratio
- Drive multiple functionalities within a rugged design
Motor 0.25Kw - 3.75Kw
Material Cast Iron
Usage Power trolley driving
Power Supply 220v-700v, 50/60 Hz, 3 phase, single voltage
H.S. Code 8483409000
Package Plywood caseCrane Geared Motorwith Buffer, is a crane assessory for driving,is made up ofGear box and Motor,which is also called Reduction motor,Motor reducer
It is widly used in end truck, bridge crane, overhead crane andtower crane.
Some explanation for catalogue:
Speed 14.1m/min, means if use this type gear module and teeth in pinion of motor, the end carriage traveling speed will be 14.1m/min.
Rotation speed 133R/MIN, means the output shaft can run 133 circles per minute (revolutions per minute)
The end carriage speed depands on motor, not on wheel.
2 pole motor is unavailable.
Brake coils, For dual voltage, default voltage for brake coil is high voltage. such asreconnectable 230/460V, Default is 460 volt brake coils.
Different type wheel could use same motor, but premises is that wheel module should be same as motor module, then they can match.
There is no relationship between wheel teeth and motor teeth.
Bigger pinions for higher travelling speeds, The end carriage speed will be double as the motor teeth grow double.
More details pls visit our website: http://www.ramhoist.com/
