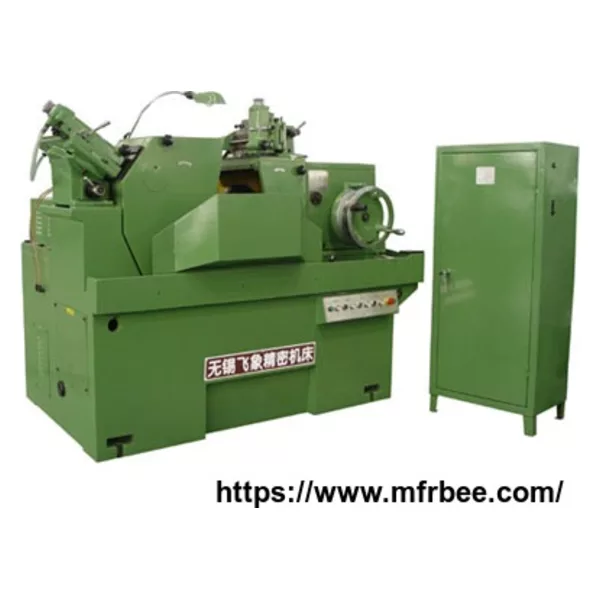

1. Salient features:
1.1. Grinding wheel and regulating wheel
1.1.1.Structure of fixed grinding wheel and movable regulating wheel
1.1.2.The grinding wheel designed in cantilever type, and its spindle adopted multi-plate long bearing bushed static-hydrodynamical oil film bearing.
1.1.3.Cantilevered regulating wheel, the spindle supports solid bearing sliding with 1:30 taper.
1.1.4.The regulating wheel feed slide is supported on roller guideway.
1.2.Electric
1.2.1.AC frequency converter is used for regulating wheel speed control .
1.2.2.Hydraulic transmission & stepless speed regulation are adopted on regulating wheel & grinding wheel dresser.
1.3.Machine body and design
1.3.1.Equipped plunge device in the grinder.
1.3.2.Iron casting with high rigidity, natural aging.
2. Technical Data:
Thru-feed | |
1)Grinding diameter | 5-80mm |
2)Grinding length | 180mm |
Plunge feed | |
1)Grinding diameter | 5-80mm |
2)Grinding length | 140mm |
Grinding wheel specifications | P500*150*305mm |
Regulating wheel specifications | PSA300*150*127mm |
Grinding wheel speed | 1300r/min |
Regulating wheel speed(stepless) | 14-180r/min |
Swiveling angle of regulating wheel | |
1)In vertical plane | -2°~ 5° |
2)In horizontal plane | 0°~ 3° |
Feed amount per division of the feed handwheel | 0.005mm |
Feed amount per division of the dresser | 0.01mm |
Height from centerline of gri.wheel & reg.wheel to workrest | 210mm |
Total power of machine | 17kw |
1)Grinding wheel motor | 15kw |
2)Regulating wheel motor | 1.5kw |
Overall dimensions | 1950*1580*1485mm |
Machine weight | about 3500kg |
Machining accuracy | |
1)Roundness | 0.002mm |
2)Cylindricity | 0.003mm |
3)Surface Roughness | Ra0.32um |
