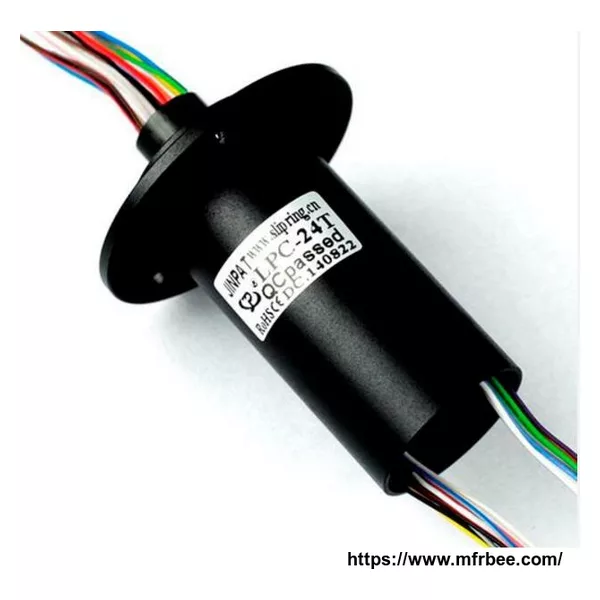

LPC-24T
Slip Ring Capsules
Description
The LPC-24T slip ring capsule is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying
electrical connections.
Features:
24 circuits models
7mm through hole size
2 amps ,240VAC/DC per circuit.
Speeds up to 200 rpm continuous
Compatible with data bus protocols
Also available with 5 and 10 amps power rings combined with 2 amps rings.
Precision ball bearings meet or exceed life requirements for most commercial applications
Advantages:
Low torque minimize system torque budget
Tight packaging to fit in the most demanding space.
Smooth running
Low electrical noise
High protection
Main Application:
Electrical test equipment
medical equipment
Manufacturing and process control equipment
Indexing tables
CCTV pan / tilt camera mounts
Robotics, rotary sensors, urgent illume equipment
Exhibit / display equipment
Aviation, military, instrument,medical equipment.
Specifications:
Operating Speed 0-200 rpm
Number of Circuits 24
Voltage 240 VAC/DC
Current Rating 2 amps per circuit
Temperature Range -20℃ to +60℃
Contact Material Gold to Gold
Lead Size 28# silver plated copper
Lead Lengths Standard 250 mm (9.843inch)
Hole Diameter 1.5~7.0mm
Dielectric Strength ≥500 VAC @50Hz, between each circuit
Insulation Resistance 100 MΩ @ 500 VDC
Electronic Noise 1mΩ Min
we JINPAT specialize in slip ring field for 20 years, with good quality and pretty competitive price. Famous slip ring manufactures in china .
We have the strong R&D capacity to meet different requirements about slip rings in different field .
Also we have our own professional designers to meet any of your requriement.
Our slip rings are widely used in many applications:
Our slip rings are used in any electromechanical system that requires unrestrained, 360°continuous rotation while transferring power or signal from a stationary to a rotating structure
such as Military Industry ,CCTV Security System , ROV, Wind Turbine System , Rotating tool, Show display, packaging machinery ,Electrical test equipment ,Robotics, rotary sensors, urgent illumination equipment and so on.
Please Contact us to discuss your special needs ,so that we can make you the best fitted solution to your needs
If want more details about our products, email:marketing6@slipring.cn
Wbesite: http://www.slipring.cn/index.php
