Place of Origin: |
Henan, China (Mainland)
|
Material: |
Stainless steel 304,316L
|
Type: |
Welded Mesh
|
Application: |
Filters
|
Weave Style: |
Twill Weave
|
Wire Diameter: |
2.2*3.5,3*5,3.2*6
|
Technique: |
Welded Mesh
|
Model Number: |
8INCH
|
Key words: |
Johnson screen
|
Brand name: |
TIANZHIWO
|
Product name: |

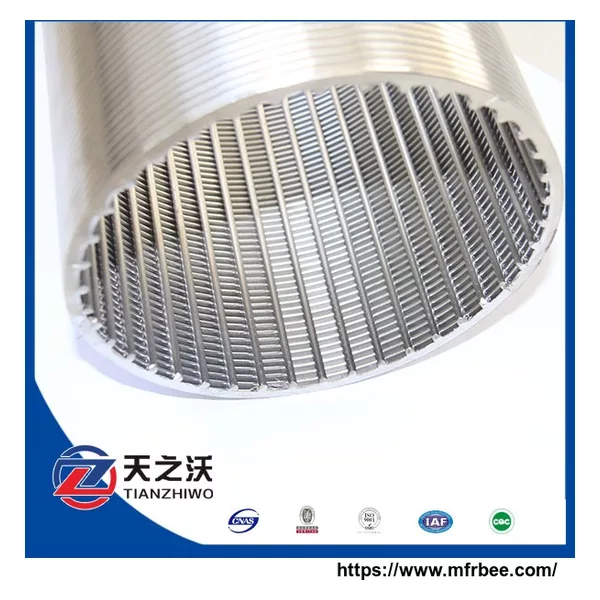

Johnson Wedge Wire Fliter Screens
|
Slot opeing size: |
0.1-2.5mm
|
Outer diameter range: |
33mm--600mm
|
Profile wire size: |
1.5*2mm,2.2*3.5,3*5,3.2*4 and so on
|
Support rod size: |
2*3*22,3.8*32,3.8*42,3.8,5 and so on
|
End connection: |
flanges,BTC,STC,Welded collar
|
Packaging Details: |
Packing: 1.Single with bubble 2. Bundling in wooded case 3. Rust proofing |
Delivery Detail: | 10-15 work days after payment |
