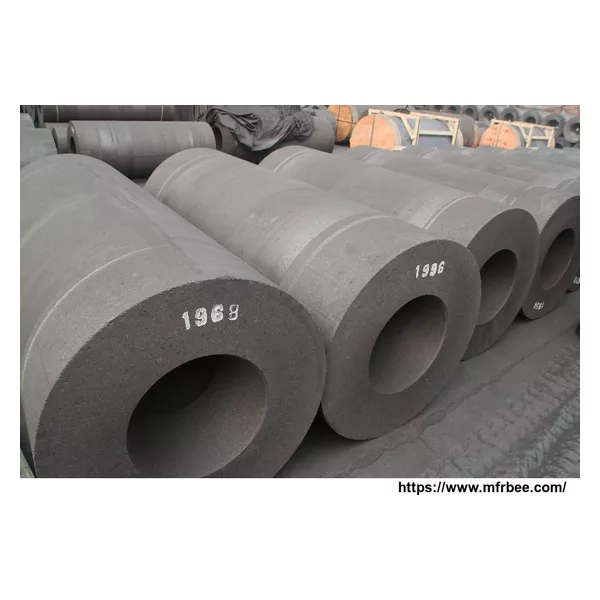

IP graphite electrode
Product Quick Detail
- Place Of Origin
- China (Mainland)
- Diameter
- 100~1400mm
- Resistance
- 15 max
- Length
- 1000~2700mm
- Apparent Density
- 1.52 min
- Packaging
- in wooden case
- Delivery
- 25 Days
Specifications
What is Graphite Electrode?
Graphite electrode is made from the domestic first petroleum coke and high quality needle coke and widely used in the electric arc furnaces for production of alloy steel, metal and other nonmetallic materials, etc. The graphite electrodes include regular power, high power, super high power, ultra high power and square electrode. Our products own the following characteristics: low electric resistance, good electric and thermal conductivity, high oxidation resistance, greater resistance to thermal and mechanical shock, high mechanical strength, high machining accuracy.
Detail Specification
1.Grade：RP, HP, UHP, SHP
2. Diameter: 200mm to 700mm at your choice
3. Length: 1800mm to 2700mm at your choice
4. Nipple: 3-4 TPI
Physical and chemical index:
| Items | Unit | RP | HP | UHP | |||||
| 250-300mm | 350-550mm | 200-400mm | 450-550mm | 300-400mm | 450-550mm | ||||
| Resistivity(MAX) | Electrode | μΩ·m | 9.0 | 7 | 7.5 | 6.2 | 6.5 | ||
| Nipple | 8.5 | 6.5 | 5.5 | ||||||
| Bending Strength(MIN) | Electrode | Mpa | 7.8 | 6.4 | 10.5 | 9.8 | 10.5 | 10.0 | |
| Nipple | 13.0 | 14.0 | 16.0 | ||||||
| Elastic Modulus | Electrode | Gpa | 9.3 | 12.0 | 14.0 | ||||
| Nipple | 14.0 | 16.0 | 18.0 | ||||||
| Bulk Density | Electrode | g/cm3 | 1.52 | 16.0 | 1.65 | 1.64 | |||
| Nipple | 1.68 | 17.0 | 1.72 | 1.70 | |||||
- Country: China (Mainland)
- Business Type:
- Market:
- Founded Year:2012
- Address:north of guochang road at cheng'an county
- Contact:Jerry Shi
