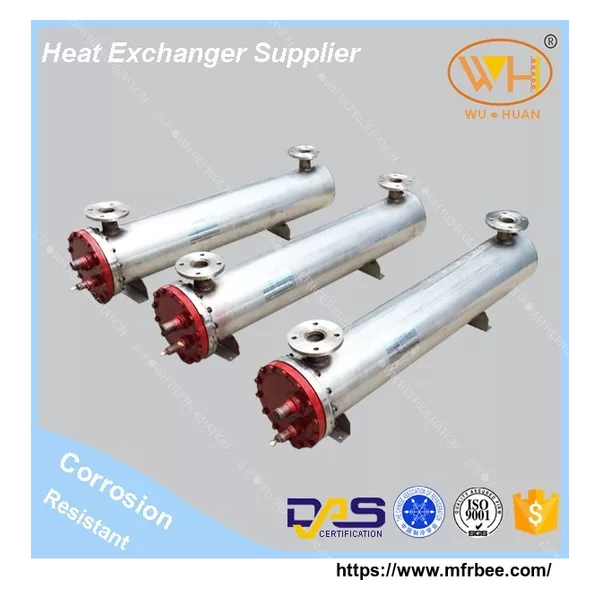

Tube Cooled Condenser For Refrigerator Freezer

  Shell And Tube Evaporator Shell Type Evaporator Dry Evaporators

Work Condition:

1)Refrigerant side(In the shell): R22,R134a,R407c,R410a etc.

2)Water side (In the tube):Nature water,sea water,salt water or other corrosive solution.

3)Capacity from 11KW~500KW

Material:

1)Heat transfer Tube: Copper alloys, Al-Brass,Cupro-Nickel, titanium

2)Shell: Carton steel.

Features:

1)Usually used for heating.

2)Th heat exchanger tube has super strong corrosion proof ability and high intensity,was tested by 1.0 MPa pressure to make sure the tube is strong and not leakage .

4)The shell was tested by 2.8Mpa water pressure to make sure the water system not leakage .

Application:

  Shell And Tube Evaporator Shell Type Evaporator Dry Evaporators can be supporting the use of frozen and refrigerated .

Notice:

1) The data list is our suggested data, We can produce any capacity heat exchangers according customer requirement and design.

2) To guarantee constant inprovement of technology , the parameters shall be changed without further notice.
