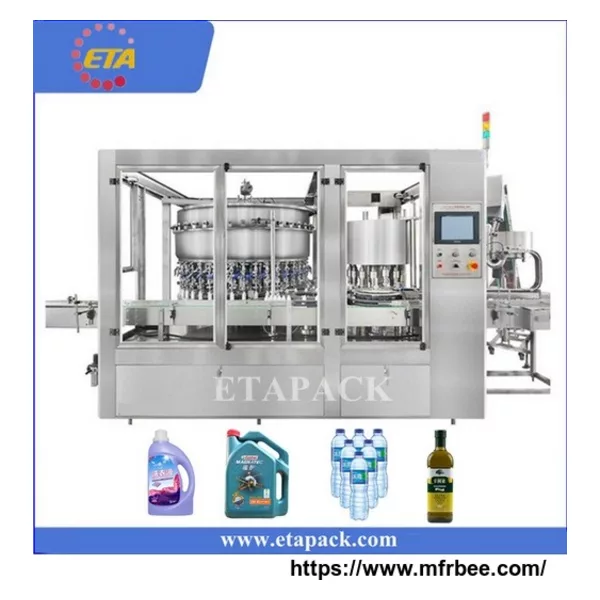

High speed liquid filling capping machine

Introduction:

1. This filling machine is applied to high capacity requirements, high speed.

2. This machine applies to foodstuff, pharmacy, cosmetic, chemical and pesticide industries.

3. Packing specification: <= 1 L

4. The machine is controlled by PLC and touch screen. It applies piston filling method.

Major characteristics:

1. This filling machine with spermatic productivity and high automation, the rotary piston filling machine is a new-generation quantitative filler. The piston cylinder is totally controlled by computer. And the whole filling process combines mechanism, electricity, phonics and pneumatic together. It also employs internationally advanced technology of the same kind.

2. Thanks to the integration of mechanics and electrics, filling specifications can be easily changed by altering parameter on touch screen control panel. Filling volume of each filling head can be adjusted respectively. The computer has function of memorizing the related parameters of each specification setting, so that it saves time for the second setting.

3. In during the work, the key parts are protected by integration of mechanics and electrics. If there is anything abnormal, it will automatically stop and alarm, then the touch screen will hint the abnormal part's whereabouts.

4. Based on the design of water-proof and pneumatic protection, so that it is sanitary.

Major technical parameter:

1. Outline Dimension: 2400mm*2200mm*2200mm

2. Number of the head: 20 heads

3. Bottle Application: Diameter: 40mm~120mm Height: 80mm~280mm

4. Packing Volume: 50ml~1000ml

5. Production Capacity: <=12000bottles/hour (tested by water)

6. Filling Error: 50ml~200ml <= ± 1ml, 200ml~1000ml <=± 2ml

7. Power Supply: 220/380V

8. Power of host machine: 4.5Kw

9. Air consumption: 0.4Mpa~0.65Mpa clean and stable compressed air.

Outline Dimension 2400mm*2200mm*2200mm

Number of the head 20 heads

Bottle Application Diameter: 40mm~120mm Height: 80mm~280mm

Packing Volume 50ml~1000ml

Production Capacity <= 12000bottles/hour (tested by water)

Filling Error 50ml~200ml <= ± 1ml, 200ml~1000ml <= ± 2ml

Power Supply 220/380V

Power of host machine 4.5Kw

Air consumption 0.4Mpa~0.65Mpa clean and stable compressed air
