60 High Frequency Welded Pipe Line
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Product Description

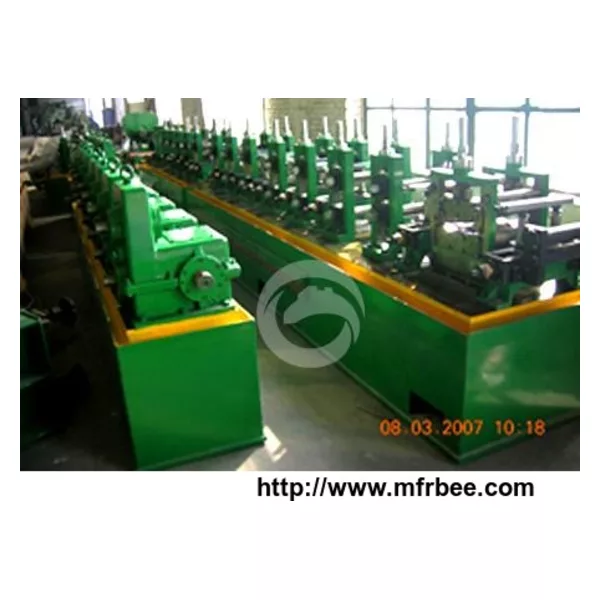

The Φ60 High Frequency Welded Pipe Line is the main equipment in the high frequency welded pipe production line. It can be divided into different types according to the diameter and the wall thickness of the pipe. The mill can produce circular pipe, square and rectangular pipe and special pipe using low carbon steel & alloy steel.
The specific process flow is:
Steel strips are first fed into the machine then are shaped into pipe blanks by rollers.
Then, under skin and pro-imity effects of high frequency electric current, induced electricity is concentrated onto the bonding surface of the pipe profile fringe.
The heated up pipe profile fringe is quickly moved to the welding temperature and finished welding under the squeeze roller's pressure.
After cooling, sizing and broad straightening, the steel pipe of needed specification is achieved.
Our products such as roll forming unit, FF- forming unit, cage forming unit can produce -80 and J55 API petroleum casing pipes and petroleum and gas pipes, which conform to the standard of API-5L, API-5CT.
This unit can also produce special pipes for air cooling condenser used by electric power plants or steel mills.
Parameters:
Diameter: ф16-ф60mm and correspondent size square and rectangular pipe
Wall thickness 0.8-3.5mm
Steel strip material: бb≤588MPa бs≤380MPa Mild steel & low alloy steel
Welding speed: 20-100m/min
Main motor power: 110Kw
High frequency equipments: 200kw
Equipment composition:
The Φ60 High Frequency Welded Pipe Line consists of an uncoiling machine, cutter & butt welder, Storing Loop, forming and sizing unit, Computer flying saw, straightener, End milling machine, hydrostatic testing machine, charge table, sack & bale machine, high frequency DC drag, product line electric appliance.
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:
- Founded Year:1999
- Address:No. 1, A-4F, Zhukai Building,No.286, HeZuo Road Shijiazhuang city, HeBei China
- Contact:Tony Liu
