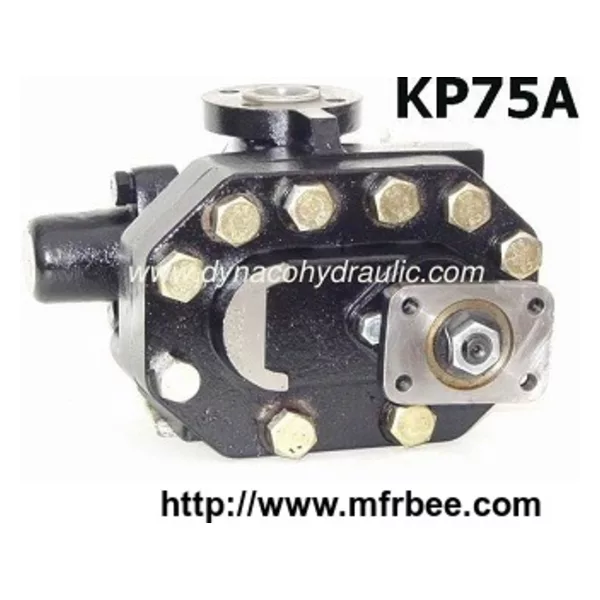

(KPseries) Lifting hydraulic gear pump is a kind of widely used high press hydraulic element with the reasonable structure, reliable working performance, and easily maintenance etc. Our production is mainly adopted in the hydraulic of dump truck made in Japan.

DYNACO can supply KP series dump pump including KP35/KP45/KP55/KP75/KP1403/KP1405/KP1505 etc.. See attachment our catalog Dynaco KP Dump Pump.pdf

KP-35B Tipper pump

Displacement(ml/r):	35
Pressure:	Max(kg/cm2): 175
Pressure:	Rated(kg/cm2): 45
Speed:	Max(r. p. m): 1800
Speed:	Min(r. p. m): 350
Valve control wire actuating force:	10
Shaft DIA(mm):	22
Weight(kg):	10
Oil:	Mobil DTE 26 or equivalent

KP-45A Tipper Pump

Displacement(ml/r):	45
Pressure:	Max(kg/cm2): 210
Pressure:	Rated(kg/cm2): 70
Speed:	Max(r. p. m): 1800
Speed:	Min(r. p. m): 350
Valve control wire actuating force:	12
Shaft DIA(mm):	22
Weight(kg):	11
Oil:	Mobil DTE 26 or equivalent



KP-55A Tipper Pump

Displacement(ml/r):	55
Pressure:	Max(kg/cm2): 210
Pressure:	Rated(kg/cm2): 70
Speed:	Max(r. p. m): 1800
Speed:	Min(r. p. m): 350
Valve control wire actuating force:	13
Shaft DIA(mm):	22
Weight(kg):	13
Oil:	Mobil DTE 26 or equivalent
