Commercial type C101/102 replacement Dump Pumps are known for their ruggedness, reliability and interchangeability. Available in both the DYNACO C101 Remote Mount and the C102 Direct Mount configurations, these pumps offer cast iron construction. Please view attachmentDYNACO C101 C102 DUMP PUMP.pdf Technical Product Catalog for detail.

Additional information about DYNACO C102 dump pump:

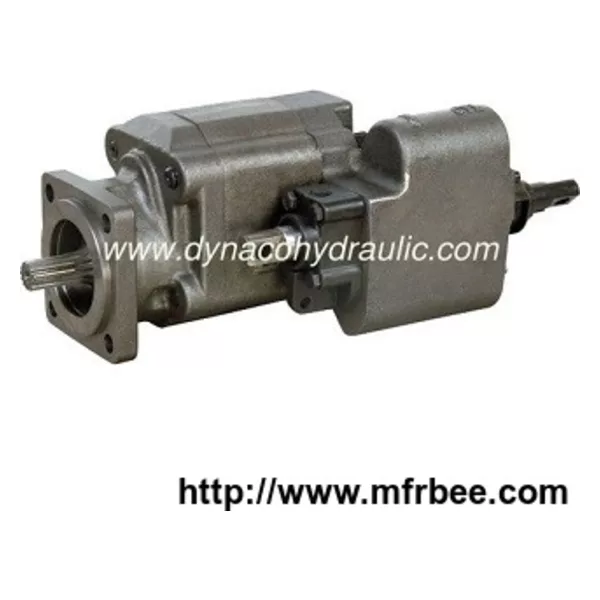

C102 Direct Mount Dump Pump with Airshift

Choose from multiple mounting types
Speeds up to 2400 rpm
Pressures up to 2500 psi (172 bar)
Output flows up to 39 & 48 gpm (147.6 & 185.4 lpm), @ 1800 rpm
Air remote operators are available
A relief valve protects the pump & cylinder
All units are supplied with factory-set 2000 psi (137 bar) relief valves

Model No.	Gear Width	GMP @ 1800RPM	LMP @ 1800RPM	Pressure (psi)	Max Speed (rpm)	Input Power (kw)	Shift Option	Rotation
DC102D-20-LMS	2"	39	147	2500	2400	75	Manual	CCW
DC102D-25-LMS	2 1/2"	48	180.5	2500	2400	90	Manual	CCW
DC102D-20-RMS	2"	39	147	2500	2400	75	Manual	CW
DC102D-25-RMS	2 1/2"	48	180.5	2500	2400	90	Manual	CW
DC102D-20-LAS	2"	39	147	2500	2400	75	Airshift	CCW
DC102D-25-LAS	2 1/2"	48	180.5	2500	2400	90	Airshift	CCW
DC102D-20-RAS	2"	39	147	2500	2400	75	Airshift	CW
DC102D-25-RAS	2 1/2"	48	180.5	2500	2400	90	Airshift	CW

Dynaco	Parker/ Commercial	Permco Model #	Metaris Model #	Muncie Part #	10 Digit #
DC102D-20-LMS	C102D-20-1	DMD20-Z-L-MS-25	MH102C-20-LMS	E2XL23-2BPRL	314-9320-202
DC102D-25-LMS	C102D-25-1	DMD25-Z-L-MS-25	MH102C-25-LMS	E2XL27-2BPRL	314-9325-202 314-9325-229
DC102D-20-RMS	C102D-20	DMD20-Z-R-MS-25	MH102C-20-RMS	E2XL23-2BPRR
DC102D-25-RMS	C102D-25	DMD25-Z-R-MS-25	MH102C-25-RMS	E2XL27-2BPRR	314-9325-201 314-9325-234
DC102D-20-LAS	C102D-20-1-AS	DMD20-Z-L-AS-25	MH102C-20-LAS	E2XA23-2BPRL	314-9325-227
DC102D-25-LAS	C102D-25-1-AS	DMD25-Z-L-AS-25	MH102C-25-LAS	E2XA27-2BPRL
DC102D-20-RAS	C102D-20-AS	DMD20-Z-R-AS-25	MH102C-20-RAS	E2XA23-2BPRR
DC102D-25-RAS	C102D-25-AS	DMD25-Z-R-AS-25	MH102C-25-RAS	E2XA27-2BPRR
