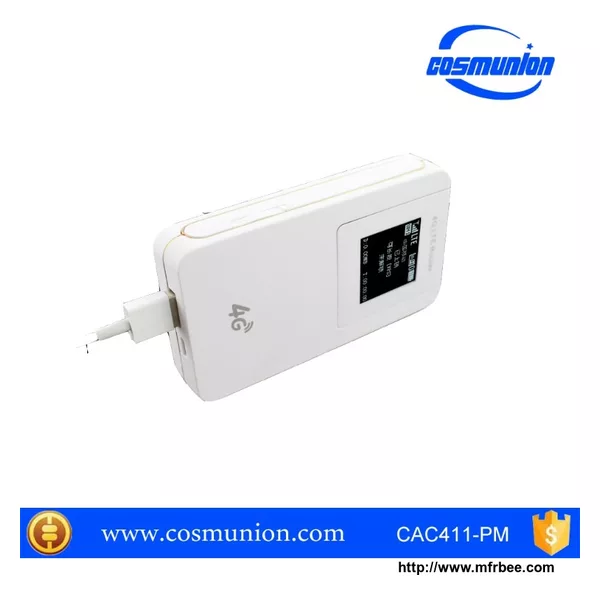

support 3000mha 4620mha battery optional 4g router wifi
Product sourcing details
- FOB Price
- USD $60.00 / Piece
- Minimum Order
- 1
- Place Of Origin
- shenzhen
- Chipset
- Qualcomm MDM9225
- Battery Capacity
- 3000mAh(4620 optional)
- Frequency
- 2.4Ghz
- Downlink Speed
- 150Mbps/s
- TF Card
- Up to 32G
- Packaging
- 20pcs each paper box
- Delivery
- 15 Days
Specifications
support 3000mha 4620mha battery optional 4g router wifi
Main Fetures:
*Powerfull Qualcomm MDM9225 chipset
*FDD LTE Cat4 downlink as high as 150Mbps
*Total 6modes and 17bands,Supports TD-LTE 1.9(B39) \ 2.3(B40) \ 2.6(B38) GHz \ 2.6(B41) GHz
FDD LTE B1(2100MHz)\ B3(1800MHz)\ B7(2600MHz)and compatable to UMTS,EVDO\CDMA 1X and GSM
*ROM+RAM: NandFlash 2Gb+DDR SDRAM 1Gb
*With 4620mAh battery rechargable(4620mAh is optional)
*Connect to the fastest network available (LTE/Dual-Carrier HSPA+).
*Share 4G LTE with 10 Wi-Fi enabled devices simultaneously.
*Enable Quick and comprehensive setup.
*Moniotr your wifi speed and condition with clear LED screen.
*Mutiple Internet access methods including wireless, USB connection modes
which enable your desktop, Laptop or any devices share internet.
*Convenient hotspot management surface
*No need to install any driver when you start enjoy wifi
*Support 32G TF-card
*Supports WPS press button set up
| Specifications | |
| Technical | |
| TD-LTE | 3GPP/3GPP2 Release9,Category 3,up to 68M DL and 17M bps UL@20MHz bandwidth |
| FDD LTE | 3GPP/3GPP2 Release9,Category4,up to 150M DL and 50M bps UL@20MHz bandwidth |
| TD-HSPA+ | 3GPP/3GPP2 Release7,up to 4.2Mbps DL and 2.2Mbps UL |
| DC-HPSA+ | 3GPP/3GPP2 Release8, up to 42Mbps ,category 24, 5.76M bps UL |
| HPSA+ | 3GPP/3GPP2 Release7, up to 14.4Mbps ,category 10,5.76M bps UL |
| HSPA | 3GPP/3GPP2 Release6, up to 7.2M bps DL,category 7/8,5.76M bps UL |
| UMTS | 3GPP Release4, up to 384 Kbps DL and UL |
| EDGE | 3GPP Release4, Multislot class 12, up to 237 Kbps |
| GPRS | 3GPP Release4, Multislot class 10, up to 85.6Kbps |
| Band Frequency | |
| TD-LTE | 1.9(B39) \ 2.3(B40) \ 2.6(B38) GHz \ 2.6(B41) GHz |
| FDD LTE | B1(2100MHz)\ B3(1800MHz)\ B7(2600MHz) |
| TD-SCDMA | 2.0(B34) \ 1.9(B39) GHz |
| UMTS | B1(2100MHz)\B2\B5\B8(900MHz) |
| EVDO\CDMA 1X | BC0(824-849MHz,869-894MHz) |
| GSM | B2(1900MHz)/B3(1800MHz)/B5(850MHz)/B8(900MHz) |
| Operational System Suported | |
| System | Windows XP SP2/SP3, Windows Vista SP1/SP2, Windows 7/8;Mac OS X 10.5; 10.6; 10.7;10.8 |
| DL/UL | |
| 2:2 | support |
| 3:1 | support |
| Bandwidth | |
| TD-LTE | support5MHz/10MHz/15MHz/20MHz |
| FDD LTE | support5MHz/10MHz/15MHz/20MHz |
| Power | |
| TD-LTE | Power Class 3 |
| FDD LTE | Power Class 3 |
| WCDMA | Power Class 3 |
| GPRS 850/900MHz | Power Class 4 |
| GPRS 1800/1900MHz | Power Class 1 |
| EDGE 850/900MHz | Power Class E2 |
| EDGE 1800/1900MHz | Power Class E2 |
| CDMA1x/EVDO 800MHz | |
| Antenna | |
| Main Antenna of 3G/LTE | inbuilt |
| Affiliate Antenna of 3G/LTE | inbuilt |
| Main Antenna of WIFI | inbuilt |
| Affiliate Antenna of WIFI | inbuilt |
| BSEL | |
| TD-LTE band frequencies Switch | support |
| Uplink MIMO transmission mode | Support single antenna port(antenna port 0)transmission |
| Downlink MIMO transmission mode | Mode1)Support single-antenna transmission Mode 2) downlink two antenna transmit diversity Mode 3)downlink two antenna open-loop spatial multiplexing Mode 4)downlink two antenna closed-loop spatial multiplexing Mode 7) downstream single-stream beamforming |
| Interoperability | |
| Roaming between TD-LTE and FDD LTE | support |
| Display Screen | |
| OLED | OLED color1.46',resolution 128*128, |
| Function keys | |
| Power on | Yes |
| Reset | Yes |
| WIFI | no |
| WPS button | Yes |
| Ethernet | no |
| USB-A-SMA Female | USB-A X 1 |
| Peripheral Interface | |
| mirco-USB | support USB2.0HS, |
| Normal USB | Used for surfing internet, charging, debuging and downloading etc |
| SIM/USIM Card Slot | yes,6PIN,3GPP 31.101 and 31.102;SIM X 1,Micro SIM X 1 |
| TFlash Card Slot | Yes |
| main antenna port of 3G/LTE | no |
| affiliate antenna port of 3G/LTE | no |
| Hardware Platform | |
| ROM+RAM | NandFlash 2Gb+DDR SDRAM 1Gb |
| Chipset | Qualcomm MDM9215 |
| Battery Parameters&Accessories | |
| Battery Type | Built-in lithium polymer battery |
| voltage rating | 3.7V~4.2V |
| battery capacity | 4620mAh or 3000mAh (optional) |
| work time | Up to 16 hours(LTE),24 hours(UMTS) |
| stand-by time | More than 5*24 hours |
| adapter | 5V/1A(optional) |
| usb cable | 1 |
| Gift box | 1 |
| Quick User Manual | 1 |
| Dimensions | 109mm*60mm*20mm |
