Function

print content: Chinese, English, picture, automatic printing date, date, batch number, serial number, barcode

Industry application

Applicable industry: food, drink, cosmetic, electron, building material chemical and other industries

Detail parameters

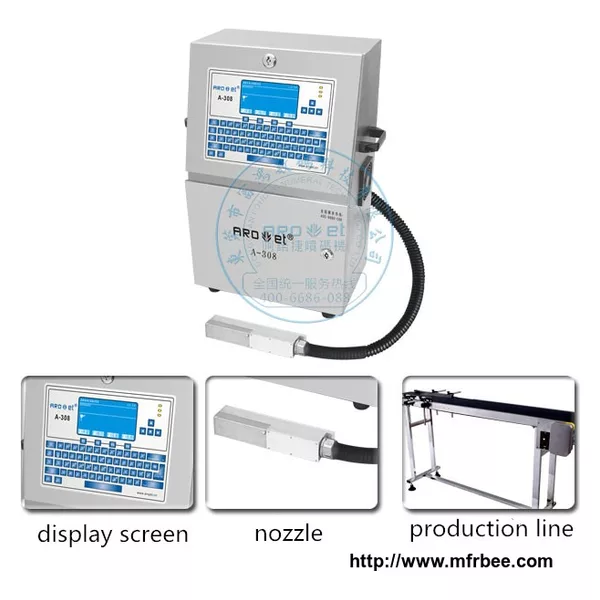

Machine type: A - 308
Maximum number of publishing: 5 lines (5 * 5)
Interface: editor, printing preview files, touch keys, graphic editing functions
Character lattice: 5*5 5*7 6*9 8*11 11*16 17*24 22*32
Print height: 1-15 mm
Print width: character can widen 1-8 times
Nozzle to the product distance: 30 mm biggest, the best printing from 10 to 20 mm
Maximum print speed: 125 m/min (5 * 7)
Information editor: 32 lattice arbitrary mix, move, rotate, combination, many fonts for choice, bold integral interval
Print direction: 360
Print content: Chinese, English, pictures, automatic jet print date, time, batch number, serial number, etc
Chinese character font: The first and second Chinese font
Print barcode: Code128, code39 and ENA13 code (optional)
Data storage: 100 messages, 100 images
Input method: pinyin input method, location input method
Nozzle throat length: 2 m
Temperature: 0-45
Use humidity: relative humidity of 20% 80%
Communication interface: photoelectric, synchronizer, alarm interface, RS232, USB (connect USB flash drive, information transmission via USB)
Weight: the gross weight: 30 kg; Net weight: 25 kg
Electrical requirements: 220 v + 10% for 50 Hz 200 VA
The machine size: 365 * 225 * 565 mm
Optional parts: host bracket, alarm, barcode printing, synchronizer, photoelectric sensors, optical fiber sensors
Seal the cartridge: adopt sealed cartridge design, save material, ink cleaner
Design: the integration of taper mixing cylinder is designed, make the ink full circulation, jet printing quality more stable, vacuum module design, let the machine maintenance more convenient, more simple structure
