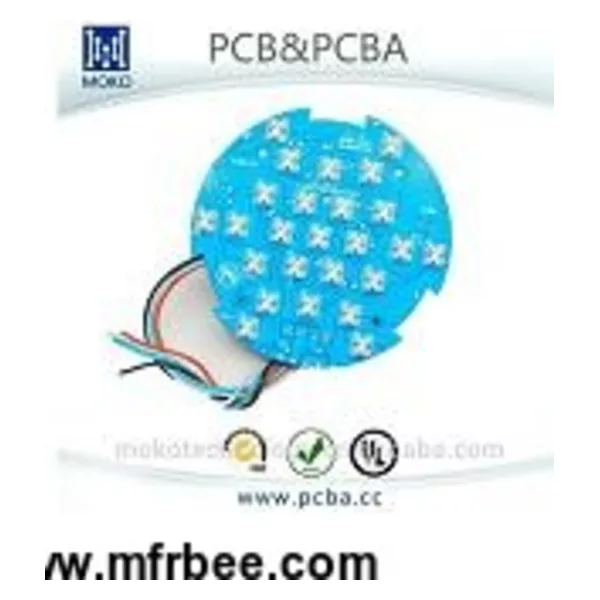

led pcb board design Assembled Led Board PCB

Minimum Order
1
Packaging
N/A
Delivery
15 Days
Place of Origin: Guangdong, China (Mainland), Guangdong China (Mainland)
Brand Name: Circuit board car led light pcb
Model Number: BM-011
Base Material: FR4
Copper Thickness: 1oz
Board Thickness: 1.0mm-1.6mm
Min. Hole Size: 0.25mm
Min. Line Width: 0.075um(3mil)
Min. Line Spacing: 0.075um(3mil)
Surface Finishing: HASL lead free/ENIG
Layer: 2,4,6,8
Min.line width: 3mil (0.075mm)
Min.line spacing: 3mil (0.075mm)
Min.hole size: 0.25mm
Solder mask: green, red,black,blue,yellow
Copper thickness: 0.5 oz,1oz
Quality certification: ISO14001:2004,ISO9001:2000
certificate: UL,ROSH,CE,CCC. ect
http://www.protelpcb.com

  • Country: China (Mainland)
  • Business Type:
  • Market:
  • Founded Year:
  • Address:4F,Building2,Guanghui Technology Park,MinQing Rd,Longhua,Shenzhen,China
  • Contact:jennyzhang jennyzhang
more images of led pcb board design Assembled Led Board PCB
