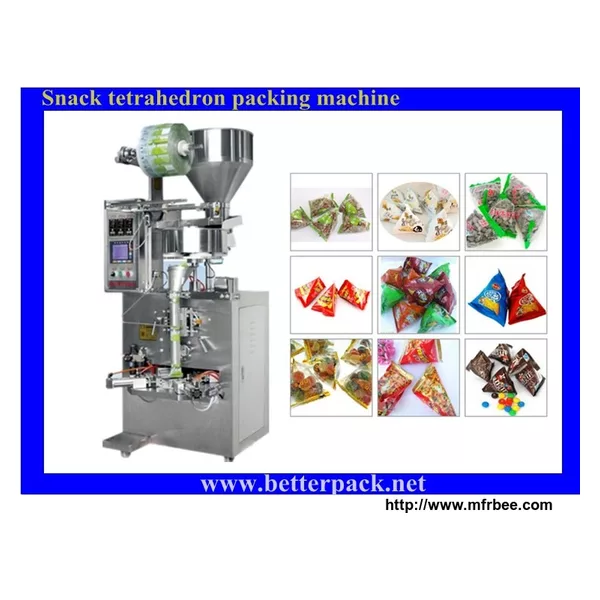

BT-80E Tetrahedral bag packaging machine
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Applications:
The vertical pouch packing machine is suitable for the plastic pyramid shape bag package of snack food or granulated food like sugar, salt, nuts, pistachio, almonds, tea, etc.
Feature:
This highly automatic packing machine has adopted a PLC programmable controller as well as an English and Chinese display screen that makes it easy to
operate and convenient to be adjusted.
The use of advanced photoelectric digital tracking system makes it possible to set the length of package and when packing film with cursor mark is used, the first package is able to seize the
cursor mark and get correct designed patterns. Synchronous package pulling system makes the movement of the packages smooth and accurate.
Sealed, insulated and corrosion-proof soft touching display screen is provided.
Main technical data:
Bag forming method: pyramid shape plastic pouch
Dosage method: by volume filler
Packing speed: 30-60 packages /min
Range of measuring: 1-50g/bag
Package length: 50-120mm
Package width: 40-80mm
Total power :0.9KW
Machine weight: 250KG
Dimension L800*W750*H1550mm
