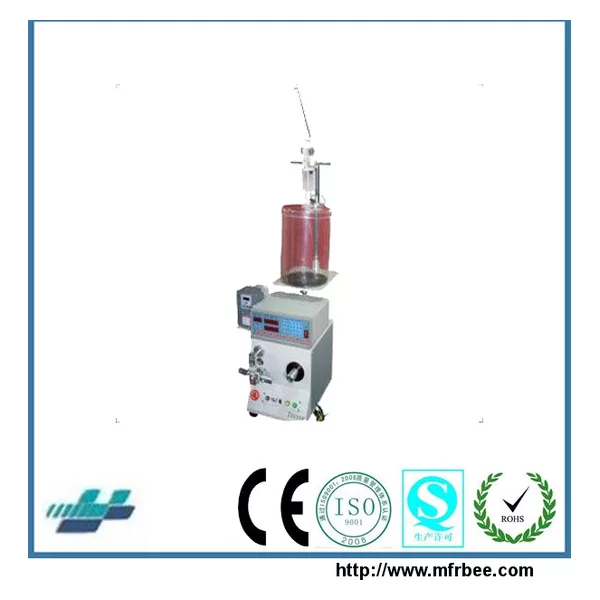

Name: Voice coil winding machine
Model: TT-ZM01X1
Wire diameter: 0.02-0.25mm
Diameter around the sites: 100mm
Spread width: 95mm(MAX)
Spindle motor: 370Walternating current motor, variable frequency drive
Power source: AC220V; 50/60HZ
Adopts AC variable frequency with microcomputer controller, the data is easy to be set.
Spools of wire arranging adopt stepping motor to set the current circuit drive that ensures fast cable speed and high accuracy
The start position of winding can be inputted by means of instruction; moreover the current position of wire arranging spool can be displayed.
Acquire foot switch device, ensure the production operations to be fast and easy.
Able to set the start winding position, width, wire spacing, speed, etc by section, so as to achieve the goal of multi-speed in multi-sections.
999-step sequence can be set and the settings can be stored for more than one years
