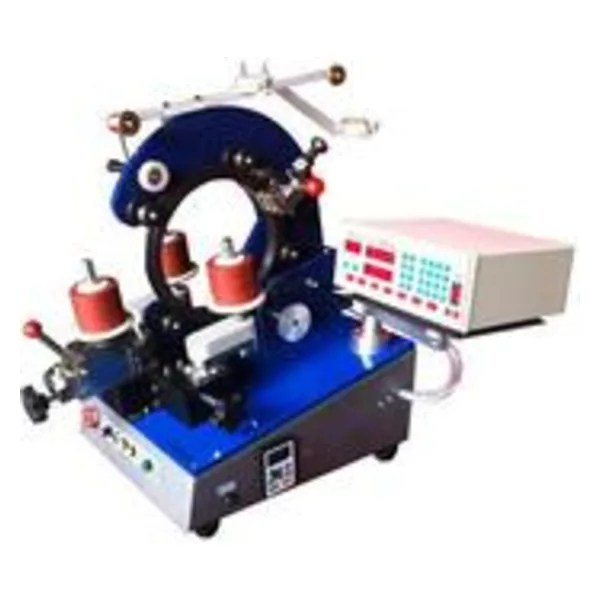

WISDOM toroidal winding machine TT-H15C
Product Quick Detail
- FOB Price
- USD $4,000.00 / Piece
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- plywood box, according to customer's requirement
- Delivery
- 30 Days
Specifications
Model: TT-H15C
Wire diameter: 0.6-2.5mm
Coil outside diamete:50-200mm
Max coil height: 95mm
Complete the internal diameter.: 40mm (MIN)
Spindle motor: 750W alternating current motor, variable frequency drive
Spreading motor: stepping motor
Power source: AC220V; 50/60HZ
Product Description
Hi-tech shuttle for highest efficiency.
Separate speed controls for loading and winding.
Accurately count length of loading by limited-switch.
Accurately count turns of winding by photo-electricity sensor.
Programmable winding direction, winding returns range (Turns or Angle) and segment winding angle.
Accurately wire spacing by programmable controller.
Memory capacity accommodates 999 sequences of parameters with off-power memory retention
