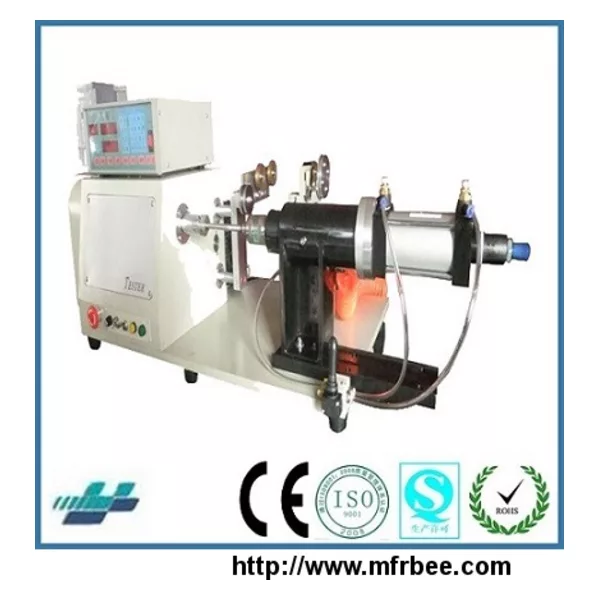

Machine Type: TT-CM01D Pneumatic Ejector Pins
Control: CNC digital control, variable frequency drive
Ejector pin means: pneumatic ejector pins
Wire size: 0.5-3.0mm
Rotating diameter: 220mm
Speed: 210mm (Max.)
wire spacing: 0.001 - 99.999mm
Winding motor: 1.5KW Variable frequency motor
Rotating speed: 1200 rpm (Max)
Power: 220V ± 10%; 50 / 60 Hz
Net weight: 140 KG
Dimensions: 1000 mm X550 mm X500 mm
• Adopts AC variable frequency with microcomputer controller, the data is easy to be set.
• Spools of wire arranging adopt stepping motor to set the current circuit drive that ensures fast cable speed and high accuracy
• The start position of winding can be inputted by means of instruction; moreover the current position of wire arranging spool can be displayed.
• Adopts wire arranging head with guiding needle, which make the wire arranging neat and accurate
• Guide wheel for wire is made of ceramic, able to endure high temperature and do no harm to the enameled wire
• Positive multi-axis synchronization winding, switch slots automatically, high production efficiency
• Acquire foot switch device, ensure the production operations to be fast and easy.
• Able to set the start winding position, width, wire spacing, speed, etc by section, so as to achieve the goal of multi-speed in multi-sections.
• 999-step sequence can be set and the settings can be stored for more than one years
