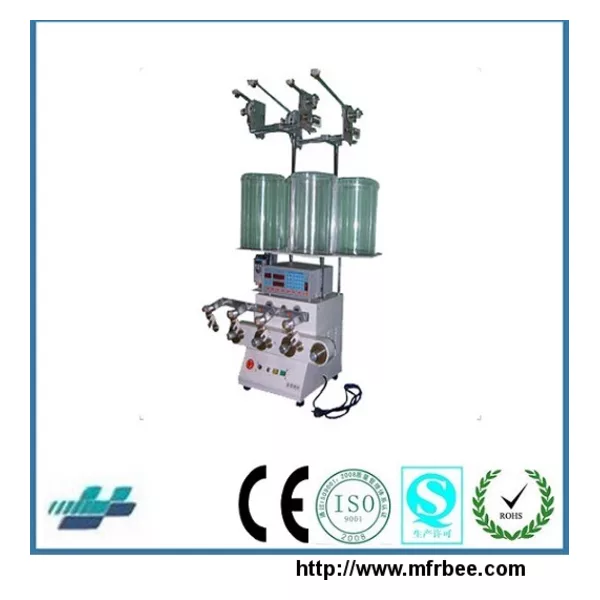

WISDOM Linear Coil Winding Machine TT-ZM04D
Product Quick Detail
- FOB Price
- USD $3,500.00 / Piece
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- plywood box, according to customer's requirement
- Delivery
- 30 Days
Specifications
Name:TT-ZM04D Positive four-axis winding machine
Diameter: 0.1-0.6
Line from: 0~9.999mm
Width: 95mm
Swing: 150mm
Spindle motor: 0.37KW,ACmotor
wire arranging motor: Stepping Motor
Maximum speed: 6000 rpm
MEMORY: 999 Group
Use the power: AC220V+10%, 50/60 Hz
Machine size(MM): 750*630*1200
Weight: 90kgs
• Adopts AC variable frequency with microcomputer controller, the data is easy to be set.
• Spools of wire arranging adopt stepping motor to set
the current circuit drive that ensures fast cable speed and high accuracy
• The start position of winding can be inputted by means of instruction; moreover the current position of wire arranging spool can be displayed.
• Adopts wire arranging head with guiding needle, which make the wire arranging neat and accurate
• Guide wheel for wire is made of ceramic, able to endure high temperature and do no harm to the enameled wire
• Positive multi-axis synchronization winding, switch slots automatically, high production efficiency
• Acquire foot switch device, ensure the production operations to be fast and easy.
• Able to set the start winding position, width, wire spacing, speed, etc by section, so as to achieve the goal of multi-speed in multi-sections.
• 999-step sequence can be set and the settings can be stored for more than one years
