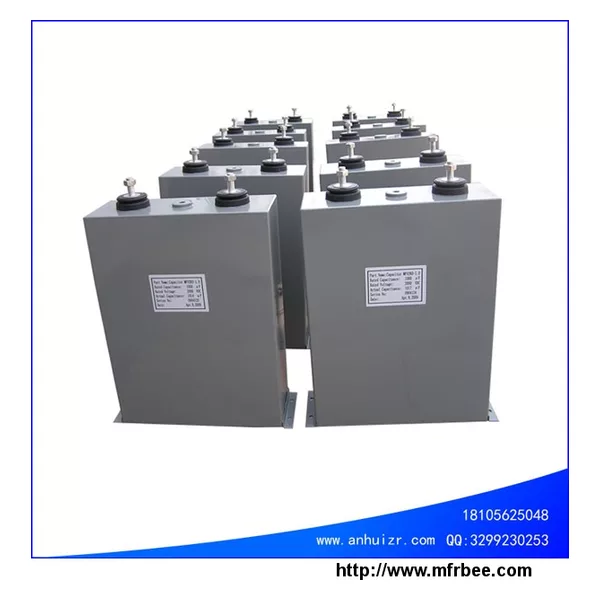

dc high volatege pulse capacitor 1000vdc 1000uf
Product sourcing details
- FOB Price
- USD $150.00 / Piece
- Place of Origin
- China
- Packaging
- Export stand carton packing for capacitors
Supplier: Anhui Zhongrong Electronics Co.,Ltd
Purchasing information
- Minimum order
- 1
- Lead time
- 3-15 days according to the quantity.
Please confirm with the supplier: Model / reference, Key specifications / compatibility, Samples, Export markets, Supply capacity.
Specifications
Applications:
Pulse capacitor is the key element of modern variable speed drive, modern variable speed drive by static frequency converter, including semiconductor switching function produce a lot of parasitic signal. Therefore, in circuitry needs capacitor date line filtering, eliminate ripple and harmonic.
Widely used in:
the magnetization machine, demagnetization machine, laser power, medical
appliance, energy-storage welding etc; Dc high voltage electrical equipment,
rectifier filtering device oscillation loop, continuous pulse device, impulse
voltage generator, current impulse generators, impact bleeder and other
non-continuous pulse device.
Technical:
|
Temperature Range |
-40C ~ +85C (+105C) |
|
Capacity Range |
0.47 ~ 12000UF |
|
Capacitance deviation |
+/-5%(J) ; +/-10% (K) |
|
Voltage |
200 ~ 15000VDC |
|
Dielectric |
1.5UN/60S |
|
Dissipation |
tgδ≤0.002(at 1KHz) |
|
Insulation Resistance |
CxRs≥5000S(at20°C 100V.DC 60S) |
|
Shock current capability |
Dv/dt>50v/us |
|
Flammability |
UL94V-0 |
|
Stray inductance |
≤30Nh |
|
Effective Current |
10 ~ 80A |
|
Reference Standard |
IEC61071 GB17702.1 |
Why Choose Us:
A. Stable quality---Advanced equipments with professional technicians
B. Reasonable price---Comparison will find difference
C. Perfect service---24 hours online for any question
D. Delivery time---3-15 days according to the quantities
