Illuminated Ad light boxes smd5050 LED backlight module
Product Quick Detail
- FOB Price
- USD $70.00 / Piece
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- 8pcs each carton
- Delivery
- 10 Days
Specifications

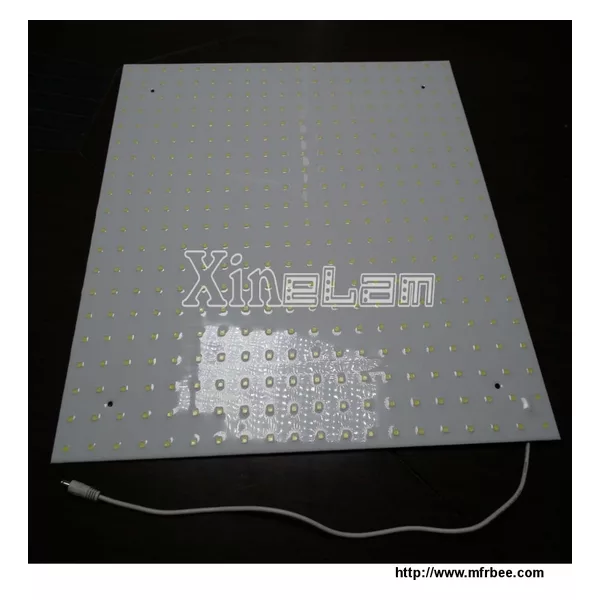

Illuminated Ad light boxes smd5050 LED backlight module
XineLam exclusive waterproof ultra thin LED Light Panel,high Intensity LEDs mounted onto lightweight Aluminum Sheets. This fantastic products offers
numerous advantages over traditional and old fashioned methods of backlighting with an amazing scope of applications.
- Patent No.: ZL200820131053 ZL200820132702
- High intensity SMD5050 LED
- Low working voltage 12v dc
- Ultra slim 3mm thickness
- High light efficiency 100Lm/w
- Waterproof protection IP67
- Stardard sizes available 300x300,300x600,600x600 or customized
- Easy to install with mounting holes or adhesive
- Brightness adjustment can be achieved even over large areas
- Safe and reliable, Long lifetime 50,000 hours
- Available in pure white, neutral white, warm white, RGB or single colour
- Optional different LED distance 33.33mm, 25mm, 16.66mm etc.
- Maintenance free
- CE, RoHS, FCC approval
- 3 Years quality warranty
Applications:
- Illuminated wall pieces – Onyx, Corian , Art Glass , Recycled glass
- Backlit countertops
- Illuminated Backsplash
- Backlit Fine art images
- Illuminated stained glass backlit
- Jewellery and display case illumination
- Museum Display case Lighting
- Bar Shelf illumination
- Lighted floor tiles
- Replacement for Fluorescent in Sign Boxes
- Trade Show Lighting / signage
- Ceiling Tile lighting
- X-ray (Radiograph) light-box
| Model | Dimension | LED QTY | Lumen | Power | Comment |
| RX-ALF5050-33 | 300x300x3mm | 81LED | 1500Lm | 15W | LED Pitch 33.33mm |
| 300x600x3mm | 162LED | 3000Lm | 30W | ||
| 600x600x3mm | 324LED | 5800Lm | 58W | ||
| RX-ALF5050-25 | 100x300x3mm | 48LED | 960Lm | 9.6W |
LED Pitch 25mm
277W 27700Lm / m2 |
| 100x600x3mm | 96LED | 1800Lm | 18W | ||
| 200x500x3mm | 160LED | 2800Lm | 28W | ||
| 200x1000x3mm | 320LED | 5600Lm | 56W | ||
| 300x300x3mm | 144LED | 2500Lm | 25W | ||
| 300x600x3mm | 288LED | 5000Lm | 50W | ||
| 600x600x3mm | 576LED | 10000Lm | 100W | ||
| RX-ALF5050-16 | 60x600x3mm | 3x36=108LED | 2000Lm | 20W |
LED Pitch 16mm
555W 55550Lm / m2 |
| 300x300x3mm | 324LED | 5800Lm | 58W | ||
| 200x500x3mm | 360LED | 6500Lm | 65W | ||
| 600x600x3mm | 1296LED | 20000Lm | 200W |
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:Europe,Americas,European Union
- Founded Year:2003
- Address:No. 73 JinYi Road, Dongfeng Town
- Contact:Rainey Lee
