Collapsible LATTICE LED module backlight fabric LED light boxes
Product Quick Detail
- Place Of Origin
- China
- FOB Price
- USD $2.80 / Piece
- Minimum Order
- 10
- Packaging
- 420pcs each carton
- Delivery
- 15 Days
Specifications

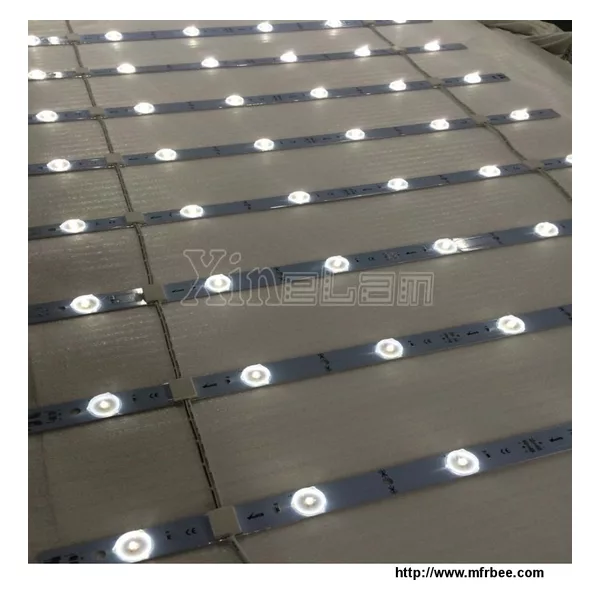

Collapsible LATTICE LED module backlight fabric LED light boxes
Patent No.: ZL201220134846
LED LATTICE Lighting System is the most efficient, reliable, easy and economic lighting solution in the market for both indoor and outdoor sign boxes and large area back-lit illumination. Designed to replace fluorescent lamps and other light sources in sign boxes or cabinets, the LED LATTICE Lighting System provides excellent light uniformity, low maintenance, low energy consumption and environment friendly solution.
- Powered by Epistar SMD2835 LED
- Wide viewing angle with even light output 160degrees
- Backlighting to light boxes minimal depth >30mm
- Energy saving and high brightness 9000Lm per square meter
- Cost-effective on lightbox illumination
- Aluminum PCB dissipate heat quickly
- Allow cutting every 1led to fit your light box sizes
- Lower light decay and long life span up to 50000 hours
- Waterproof IP68 rated (optional),ideal for outdoor use
- Good color uniformity (CRI>80)
- Easy installation and maintenance free
- Available single sided or double sided
- 3 Years warranty
- CE, RoHS approval
| Model number | Single-side-RX-BKT41X2-500 |
| Material | Rigid PCB + TV Lens |
| Lighting sources | 6pcs LED chips |
| Strip Dimension | 500mm |
| LED chips space | 83mm |
| Strip space | 93mm |
| Distance to the face-plate | >30mm |
| Waterproof | No, But waterproof available |
| Power consumption | 4.2W/pcs |
| DC output voltage | DC24V |
| Luminous flux | 400Lm/pcs |
| LED luminous efficiency | 90Lm/W |
| Bean angle | 160° |
| Color rendering index (CRI) | Ra>80 |
| Light appearance(CCT) | 2800~3200K, 3800~4250K, 6000~6500K |
| Applicable environment | Dry and Damp Location |
| Working temperature | -30~50 |
| Lifespan | 50,000hrs |
| Certification | CE, RoHS |
- Maximum roll dimension 500x4650mm 50bars linking
Applications:
- (1) Sign light boxes
- (2) Indoor or outdoor sign cabinets
- (3) Large advertising light boxes
- (4) Large poster light boxes
- (5) Internally lighted billboards
- (6) Double-side signboard
- (7) Other signage display areas
- (8) Wall, glass and column decoration
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:Europe,Americas,European Union
- Founded Year:2003
- Address:No. 73 JinYi Road, Dongfeng Town
- Contact:Rainey Lee
