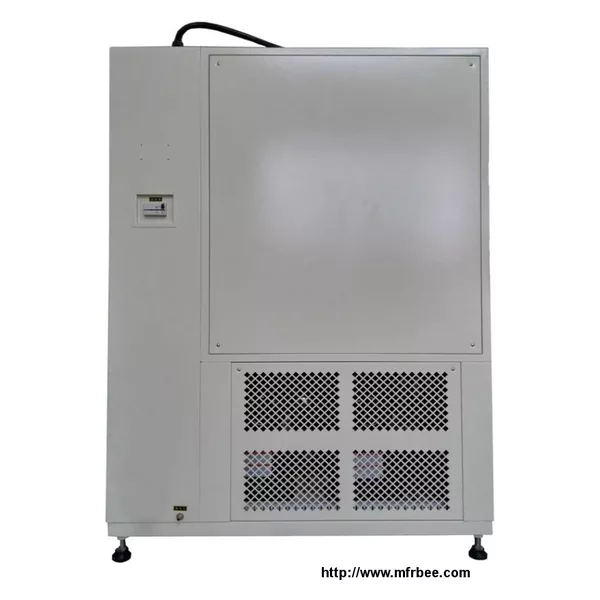

Model ET4008
Test Area Volume (L) 80
Temp. Range (℃) -40/+180
Temp. Fluctuation (℃) ±0.1 –±0.5
Temp. Uniformity (℃) ±0.5 –±2.0
Heat Up Rate (℃/min) 3.3
Cool Down Rate (℃/min) 3.0
Test Area Dimension 400*400*500
Exterior Dimension 600*1000*1750
(W*D*H mm)
Max. Load (KG) 5
Cooling Methods Air-Cooled
-Intelligent 32bit measuring and control system with colorful screen. Interface USB and Ethernet.
-Programmable power outlet with 4-CH. ON/OFF output control to ensure safety.
-Patented air circulation system improve test’s accuracy.
-Independent thermal protector and sensors keep test specimen off over temperature, breezeless and smog.
-Network video monitoring is synchronized with test data.
-Without defrosting during operating in low temperature.
- Modular fabrication technique.
-APP mobility management.
-Environmental servo refrigerant flow control for energy saving and quick heat-up/cool-down rate.
-Uniquely operation mode makes testing zone’s temperature back to R.T after test, which protects sample status.
-Automatic reminder of maintenance time of equipments and software of fault records.
-Optional remote service function and video CD of equipment operation.
