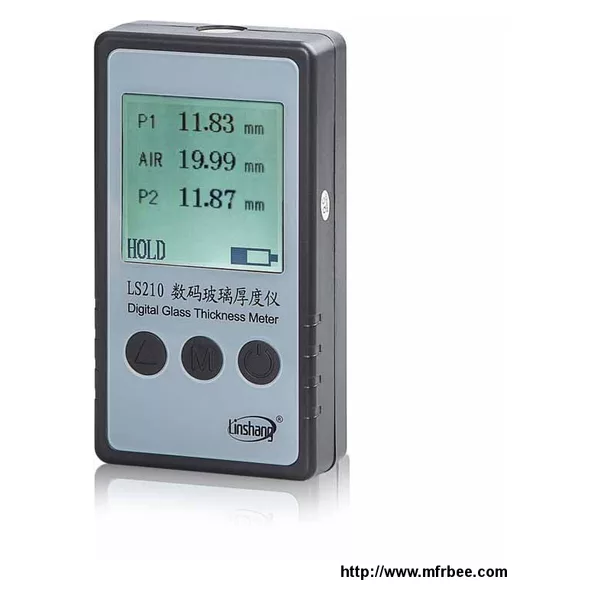

LS210 Digital Glass Thickness Meter

FOB Price
USD $544.00 / Piece
Place Of Origin
China
Minimum Order
1
Packaging
1pcs in aluminum and carton box
Delivery
2 Days

LS210 Digital Glass thickness meter is mainly used on measuring glass and air space in insulated glass (IG), it also can measure individual panes of glass and the thickness of a glass bottle etc, special for those situations where common ruler cannot easily do it.

Parameters

1: Dimensions: 130mm*70mm*28mm(L*W*H)

2: Weigh: 200g

3: Resolution: ± 0.2mm

4: Range: Glass Thickness Scale 60mm, Air Space Scale 35mm

5:Power supply: 4 AAA alkaline batteries

Feature:

1.Laser reflects on CCD to measure glass thickness and Air thickness

2.Measure Glass & Air Space (insulated glass) quickly from single side of IG Units

3.Accuracy: ± 0.2mm

4.Large LCD, simple operation, easy reading result value
