LS117 Optical Density Meter
Product Quick Detail
- FOB Price
- USD $614.00 / Piece
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- ipcs in aluminum and carton box
- Delivery
- 2 Days
Specifications

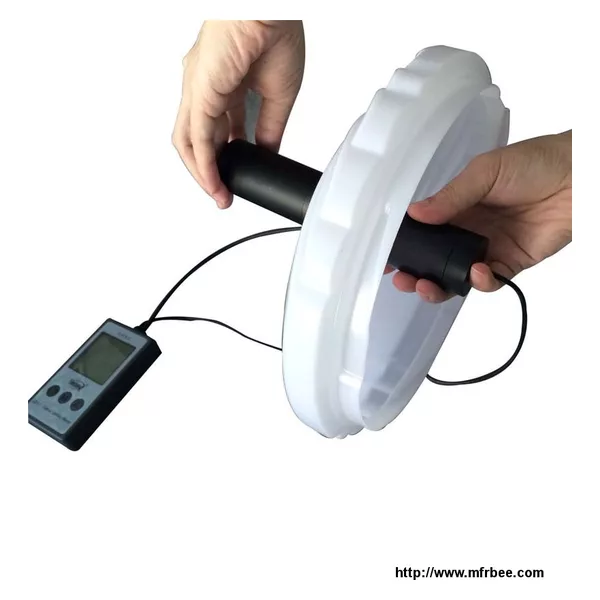

LS117 optical density meter measures the optical density and light transmittance at the same time, mainly for the following three types of product measurement:
1: All graphic arts film, measuring absolute optical density and relative density and dot area
2: X-ray film, aluminum film materials etc, measuring absolute optical density.
3: All kinds of milky white, fog material, measuring light transmittance.
Parameter
1) Density Measuring range: 0.00 --- 6.00 OD
2) Dot Area Measuring range: 0 --- 100%
3) Resolution: 0.0005% Transmission / 0.01 OD
4) Density Accuracy: ±0.02 (0 -2.00 OD)
±2% (2.00-6.00 OD)
5) Transmittance Accuracy: ±1%（0% --- 50%）
±2%（50% --- 100%）
6) Aperture: 2mm
7) Light source: ANSI/ISO Visual
8) Power supply: 4*AAA alkaline battery
Features
1) Completely self-contained operation. No independent power supply or light source required.
2) Ideal for all graphic arts film applications, from quality control to calibration.
3) Directly measures density, density difference and dot area.
4) Simple to operate and easy to use
5) Able to measure densities up to 6.0 OD
- Country: China (Mainland)
- Business Type: Glass,Window, Film and UV Test Meters
- Market:Asia,European Union,Americas,Oceania,Middle East
- Founded Year:2008
- Address:407-408, NanTianhui business building, Xinan 2 road, Baoan District, Shenzhen city, Guangdong province, China 518101
- Contact:Anita Liu
