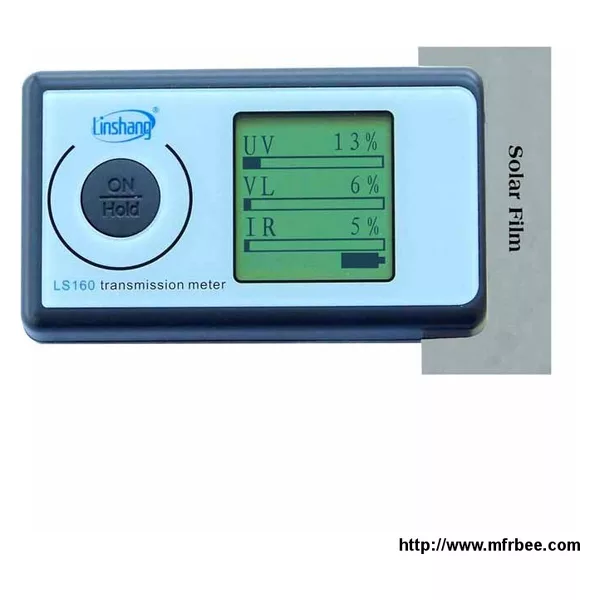

LS160 Solar Film Transmission Meter
Product Quick Detail
- 75USD
- /piece
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- ipcs in carton box
- Delivery
- 2 Days
Specifications
LS160 Solar Film Transmission Meter is a small size, portable product for transmission value measurement. It is able to simultaneously measure and display UV, Visible and Infrared transmission values.
Parameter
1. Size: 93mm *52mm *25mm(L*W*H)
2. Weigh: 65g (exclude batteries)
3. Thickness of testing sample: <� 0.8mm
4. Resolution: 1%
5. Accuracy:+/- 2%(Colorless and transparent material)
6. VL Peak wavelength: 530nm
7. UV Peak wavelength: 365nm
8. IR Peak wavelength: 950nm
9. Battery: 4*AAA alkaline battery
Feature
1. UV transmission meter, IR transmission meter, Light Transmittance Meter, Three function in ONE device.
2. Small size, portable product for transmission value measurement.
3. Simple operation, putting the testing sample in the “OPENING”, UV, Visible and Infrared transmission values of the sample will simultaneously display.
4. using for window film, solar film and other transparent material testing.
- Country: China (Mainland)
- Business Type: Glass,Window, Film and UV Test Meters
- Market:Asia,European Union,Americas,Oceania,Middle East
- Founded Year:2008
- Address:407-408, NanTianhui business building, Xinan 2 road, Baoan District, Shenzhen city, Guangdong province, China 518101
- Contact:Anita Liu
