30 Degree glass lens
Product Quick Detail
- Minimum Order
- 50
- Place Of Origin
- china
- Packaging
- one pcs in a small box
- Delivery
- 5
Specifications

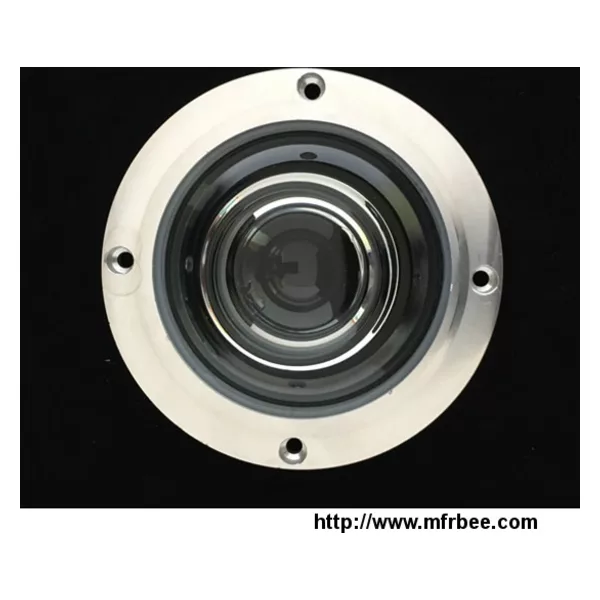

30 Degree glass lens for High bay light ( RH-HBL-19)
RH-HBL-19 Main Parameter
| Model No | RH-HBL-19 |
| Material | High borosiliate glass |
| Refractive index | 1.474 |
| Working Tem | -50-550 degree |
| Light Transmittance | 95% |
| Photometrical curve | round light shape |
| Diameter | 85mm |
| View degree | 30 degree |
| IES File | available |
| Applicable COB Led | 20W,30W,40W,50W,60W,70W,80W,100W COB Led ( < 45 x 45 mm) |
| Application | widely used for 20W-100W Led high bay light |
RH-HBL-19 Application
Widely used for integrated 20W-100W COB Led high /low bay light,factory,warehouse,mine,workshop,big toll station,gas station,stadium,exhibition,wharf and other long-distance led lighting place
Reeth glass lens advantage
1.Made of high borosilicate glass
2.High efficiency in light utilization,long life time
3.Lower maintenance charges
4.Clear and transparent, never get yellow
5.High heat resistant and high light transmittance
6. we can offer silicon gasket and metal holder
Reeth company feature
1) we can provide professional optics system service
2) We are familiar with lighting terminology
3) We have the ability to analyze the photometric layout
4) We can custom-made based on client's samples and drawing
5) Professional research team and optical technology
payment terms
T/T,Western union ,money gram and paypal are all acceptable
- Country: China (Mainland)
- Business Type: Led glass lenes, glass led lenses, optics glass lens, COB led glass lens , COB Led lens, high power led glass lens, glass optics , senondary optics for COB Led , high borosilicate glass , lens of glass , glass lenses , led street light glass lens, led hig
- Market:
- Founded Year:2009
- Address:上海宝山区镇泰路
- Contact:Lisa Liu
