1.High screening efficiency.
2.Low noise and quick discharge.
3.Small volume.
4.Low consumption.
5.Easy to move and install.

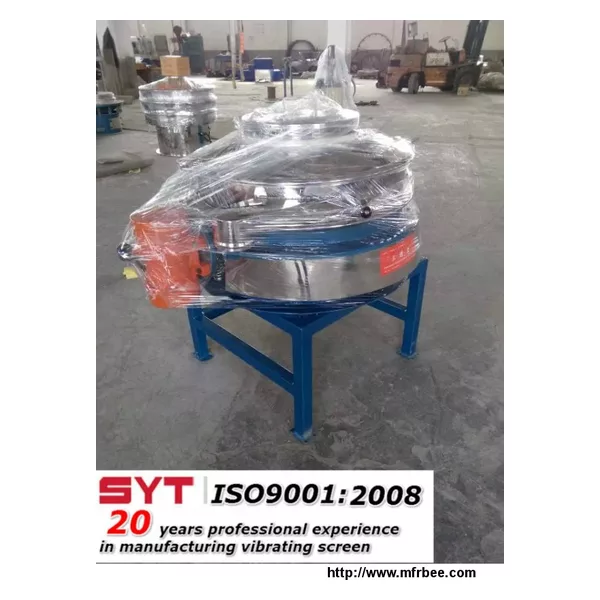

Vertical screen, which has single-and dual vibration source, is mainly used for powder production line processing of powder cleaning and screening .
Product Description
It is widely used for flour, starch, washing powder, metal powder, additives, chemicals, non-mining sectors of the particle powder rough screening, precision screening. High capacity, easy to
integrate with the production line. Can choose between 600MM with 1800MM.
Features
All stainless steel design, attractive and durable exterior. Small size, less space, easy to move. Low energy consumption and high efficiency. Easy to dismantle and easy to clean internal and
external, meet the food GMP grade.
Automatic operation, can work 24 hours ,ultra-low mute design production. Rigorous seal, liquid does not leak, dust is not rising. Single layer, multi-layer to use, a multi-stage
filter.
Vertical vibrating screen which is a multi-purpose filter machine,is suitable for rapid, large amount of fine granular material. A single motor and dual motor can be layout. Its main characteristic is material in the screening machine time is short, the material can be quickly outside, you can install a lower working position. Depending on the conditions of usage, we can make targeted modifications of the model in order to reduce the labor intensity and improve production efficiency.
Model |
Power
(kw) |
Diameter
mm |
Active Area
(centiare) |
Size
mm |
Remarks |
SY-600 | 0.12 | 520 | 0.2124 | 740*600*500 | |
SY-800 | 0.18 | 720 | 0.4072 | 1010*800*600 | |
SY-1000 | 0.18 | 890 | 0.6221 | 1200*970*640 | |
SY-1200 | 0.25 | 1090 | 0.9331 | 1430*1170*790 | |
SY-1500 | 0.55 | 1390 | 1.5175 | 1780*1470*760 |
