oval street light glass lens
Product Quick Detail
- Minimum Order
- 50
- Place Of Origin
- China
- Packaging
- one pcs in a small box
- Delivery
- 5
Specifications

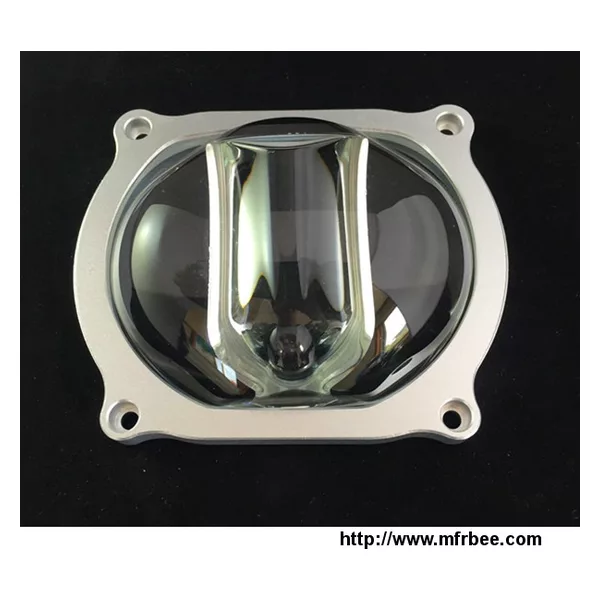

Oval street light glass lens suitable for Cree COB CXA 1507, CXA1512, CXA2520 ,CXA2530 Series ( RH-SL-08)
RH-SL-08 Main parameter
| Model No | RH-SL-08 |
| Material | high borosilicate glass |
| Refractive index | 1.474 |
| Working temperature | -50-550 degree |
| Ligjt transmittance | 95% |
| photometric curve | bat wing light shape |
| view degree | 70 x 135 degree |
| lens size | 107 x 87 x 32mm |
| Lens price | 4.19 ~ 5.32 USD/Complete set ( lens + silicon gasket + metal holder) |
| lens structure | oval shape |
| Applicable COB Led | 30W-100W COB Led ( < 45 x 45 mm) |
| Application | widely used for 30W-100W COB Led street lighting |
Suitable COB Led as below
