Model No | RH-SL-17 |

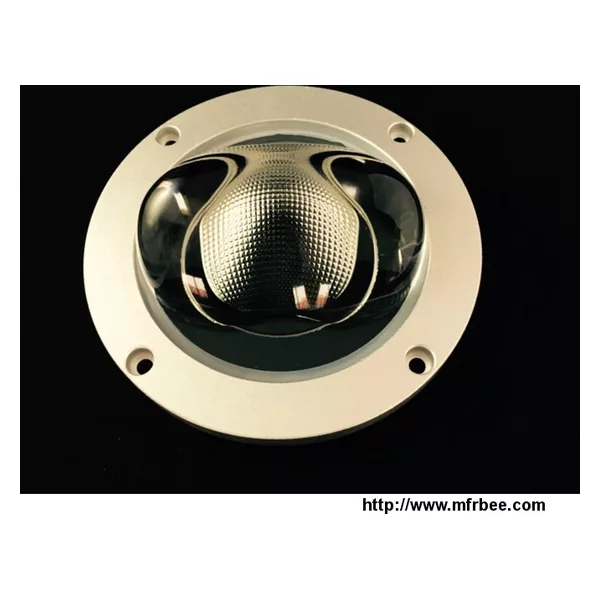

Description | 92mm street light glass lens with No-Glare , bead surface ,asymmetrical light |
Lens material | high borosilicate |
Refactive index | 1.474 |
Working temperature | -50-550 degree |
Light transmittance | 95%, if AR coating, can be up to 97% |
Photometric cuve | asymmetrical light pattern |
Lens diameter | 92mm street light lens |
View degree | 50 x 130 degree |
Lens price | 5.65 ~5.90 USD/Complete set ( lens + silicon gasket + metal holder) |
Lens shape | round street light glass lens |
Concave surface | bead surface |
Suitable COB Led | Bridgelux, Citizen, Sharp, Osram, Cree, Philip , Luminus and others COB Led |
IES file | Available |
IP rating | IP65 |
Application | can be widely used for 30W/40W/50W/60W/70W/80W/100W Led street lighting |
widely used for integrated 30W-100W COB Led street lighting, road,Sideway, square, school ,courtyard,highway and other outdoor lighting places
1.Made of high borosilicate glass
2.High efficiency in light utilization,long life time
3.Lower maintenance charges
4.Clear and transparent, never get yellow
5.High heat resistant and high light transmittance
6. we can provide silicon gasket and metal holder
1.we can provide professional optics system service
2.We are familiar with lighting terminology
3.We have the ability to analyze the photometric layout
4.We can custom-made based on client's samples and drawing
5.Professional research team and optical technology
T/T,Western union , money gram and paypal are all acceptable
