20W/30W street light glass lens
Product Quick Detail
- FOB Price
- USD $4.50 / Piece
- Place Of Origin
- China
- Minimum Order
- 50
- Packaging
- one pcs in a small box
- Delivery
- 5
Specifications

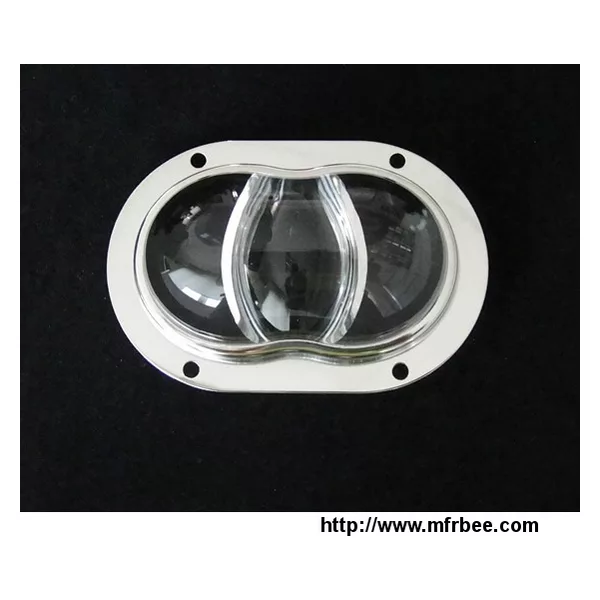

10W/20W/30W/40W/50W /60W COB Led Street Lighting Lens with peanut shape ( RH-SL-06)
RH-SL-06 Main parameter
| Model No | RH-SL-06 |
| Description | peanut shape street light Lens suitable for Cree CXA1507, CXA1512,CXA2520, CXA2530 COB Series |
| Material | high borosilicate glass |
| Refractive index | 1.474 |
| Working temperature | -50-550 degree |
| Light transmittance | 95% |
| photometric curve | bat wing light shape |
| lens size | 86 x 52 x 30mm |
| lens structure | peanut shape street light glass lens |
| Silicon gasket and holder | available |
| View degree | 70 x 140 degree |
| Applicable COB Led | 20W,30W ,40W,50W COB Led( < 35 x 35 mm) |
| Fob price | 3.93 -4.50 USD/Complete set ( lens+gasket+holder) |
| Application | Widely used for 10W-50W Led street lighting |
Suitable COB Led as below
RH-SL-06 Application
widely used for integrated 10W, 20W, 30W,40W, 50W COB Led street lighting, road, sideway, square, school, courtyard, highway and other outdoor led lighting places
Reeth glass lens advantage
1.Made of high borosilicate glass
2.High efficiency in light utilization,long life time
3.Lower maintenance charges
4.Clear and transparent, never get yellow
5.High heat resistant and high light transmittance
6. We can provide silicon gasket and metal holder
Reeth company feature
1.we can provide professional optics system service
2.We are familiar with lighting terminology
3.We have the ability to analyze the photometric layout|
4.We can custom-made based on client's samples and drawing
5.Professional research team and optical technology
payment terms
T/T,Western union and money gram are all acceptable
