Addition cure encapsulating and potting compound
Product Quick Detail
- FOB Price
- USD $12.00 / Piece
- Place Of Origin
- SHENZHEN
- Viscosisty(After Mixing) （Cps）
- 2000～3000
- Curing Time （25 Centigrade,Min）
- 480
- Hardness（Shore A）
- 55±5
- Dielectric Strength（KV/Mm）
- ≥25
- Volume Resisivity（Ω·Cm）
- ≥1.0×1016
- Fire Resistance
- 94-V1
- Minimum Order
- 200
- Mixing Ratio
- 1：1
- Operating Time（25 Centigrade Hr）
- 120
- Curing Time（80 Centigrade Hr）
- 20
- Thermal Conductivity [W（M·K）]
- >=0.8
- Permittivity（1.2MHz）
- 3.0～3.3
- Linear Expansibility [M/（M·K）]
- ≤2.2×10-4
- Packaging
- 1KG,5KGS,20KGS,25KGS,200KGS
- Delivery
- 15 Days
Specifications

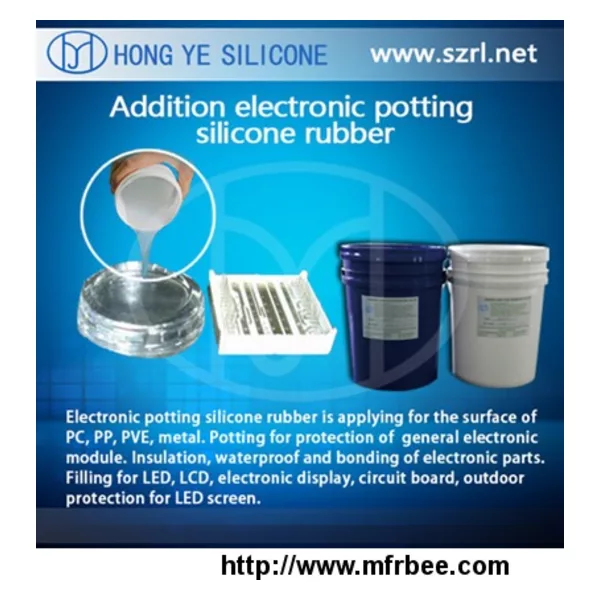

Addition cure encapsulating and potting compound
1.Product Feature of Electronic Potting Silicone Rubber
HY-9055 silicone rubber is a kind of low viscosity, Inherent flame resistance, two components addition cured potting silicone with heat-conducting. It cures with both on room temperature and heated temperature. It has the feature of the higer temperature the faster of the curing time. It can be applied to electronic components for insulation, waterproofing, fixed and flame retardant. It mainly applied in electronic components surface with materials of PC(Poly-carbonate)、PP、ABS、PVC, etc. and metal materials.
2.Typical Application of Electronic Potting Silicone Rubber
HY-9055 electronic potting silicone rubber could be applied to
- high powered electronics,
- DC/DC module and circuit board which requires heat dissipation and high temperature resistance.
-It can be broadly used for LED screen, Wind Power Generator, PCB substrate, etc.
3. Technical Guidelines of of Electronic Potting Silicone Rubber
a, Pls put part A and part B in separate container and stir evenly before mixing the two part together.
b, Mixing Ratio: part A: part B = 1:1
c, Deaeration the mixture in vacuum pump under 0.08 MPa for 3-5 minutes.Then the mixture could be used for pouring.
SHELF LIFE AND TRANSPORTATION
1. Twelve(12) months when stored at 24C in tightly closed original packages.
2. This kind of product is non-dangerous product, which could be transported as general chemicals.
3. Storage beyond the expired date doesnot necessarily mean that the product is no longer usable. In this case however, the properties required for the intended use must be checked for quality assurance reasons.
