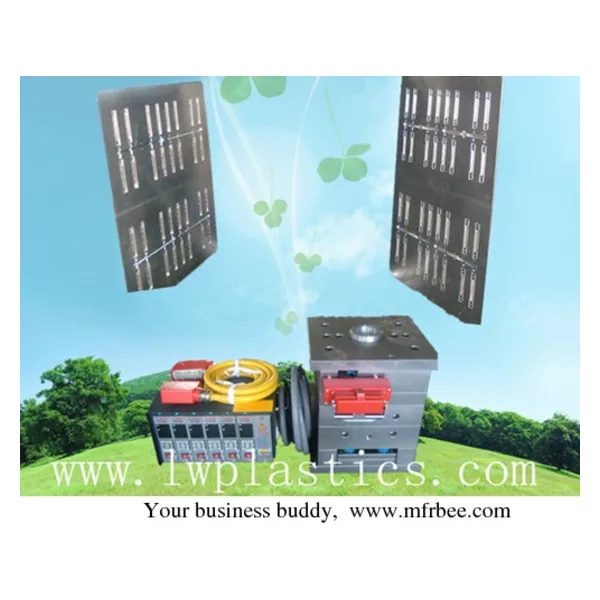

Inline Flat Dripper Mould
Product Quick Detail
- Place Of Origin
- China
- Packaging
- Wooden Case
- Delivery
- 30 Days
Specifications
Inline Flat Dripper Mould is a kind of plastic injection mould used to produce integral flat drippers which are used for drip tape.
1. The mould adopts cold/hot/semi hot runner system according to request from different customers.
2. Fine quality mould steel of S136H（HRC48-50) imported from Sweden is adopted for the mould cavity, as makes lifespan of the mould reaching over one million shots.
3. Mould base is of famous brand such as LKM.
4. The machining accuracy for the mould can reach ±0.01mm, and roughness can reach Ra0.08.
5. The dripper manufacture deviation Cu is less than 1%.
6. The deviation factor for dripper flow rate is less than 5%.
7. Mould is designed with 2D/3D drawing, which can be offered to customers as technical support.
8. The flow rate, diameter and length for dripper shall be designed and made according to samples or request from customers.
9. Mould shot period is 9 to 12 seconds.
10. Water circulation is adopted for cooling of the mould.11. An even and balanced subsurface gate is adopted for the mould cavity structure, with drippers pushed out by mandrils, so automatic production can be achieved.
