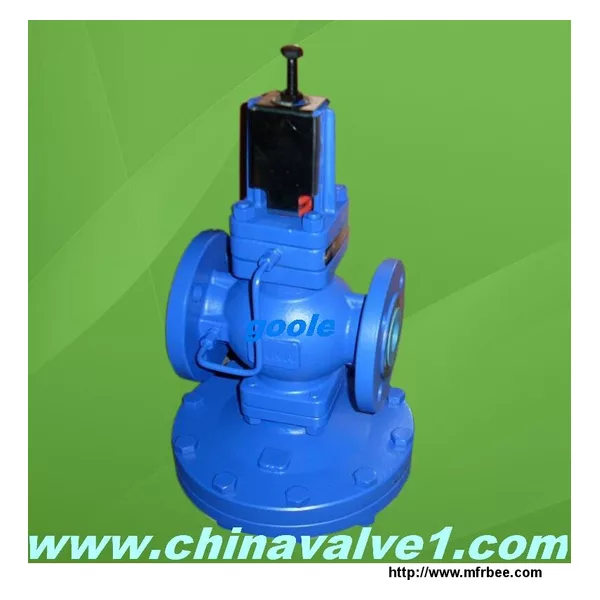

DP17 pilot operated pressure reducing valve
Product Quick Detail
- FOB Price
- USD $150.00 / Piece
- Place Of Origin
- Wenzhou,China
- Minimum Order
- 1
- Packaging
- plywood case
- Delivery
- 15 Days
Specifications
-
-
-
DP27 Pilot Operated Pressure Reducing Valve
DP17/DP27/DP143 Type PRV are all Pilot Operated Diaphragm Type Pressure Reducing Valve
-
-
-
-
DP17 pilot operated pressure reducing valve
Product: DP17 pilot operated pressure reducing valve Pressure Rating: 1.6- 2.5Mpa Specification: DN15-50 Material: Steel WCB Standard flanges: DIN, ANSI, JIS
-
-
-
-
Y14H/F direct acting bellows pressure reducing valve
Goole Y14H/F Direct Acting Bellows Pressure Reducing Valve is newly improved product based on MIYAWAKI. This Direct Acting Bellows Pressure Reducing Valve material is Stainless steel.
-
-
-
-
Y43H Pilot piston type steam pressure reducing valve
Pilot piston type pressure reducing valve is mainly used for steam, it mainly composed of main valve and pilot valve. The main valve consists of valve seat, main valve disc, piston, cylinder sleeve, and spring.
-
-
-
-
DP17 pilot operated pressure reducing valve
This pressure reducing reducing valve IS the new type pilot extra-huge membrane pressure reducing valve developed by our company -
This Pilot Operated Pressure Reducing Valve product another prominent features: the same body can be installed and exchange the voltage valve in the more than at the same time, realize temperature control, upstream pressure control, remote switch control, etc.
Super high sensitivity guide type diaphragm valve main technical parameters and performance indicators.
DP17 Pressure Regulator's main technical parameters and indexes of performance
Nominal pressurePN25Maximun design pressure(PMA)25bar g @ 120Maximun design temperature(TMA)232 @ 21bar gMinimun design temperature(TMI)-10Maximun upstream pressure for saturated steam service(PMO)17bargMaximun operating temperature(TMO)232 @ 21bar gMinimun operating temperature(TMIO)0Maximun differential pressure( PMX )17barMaximum cold hydraulic test pressure38bar gmaterial of main component
Name of componentMaterial of componentValve body, valve coverWCBValve seat2Cr13valve flap2Cr13Valve rod2Cr13MembraneBrassAdjusting spring60Si2Mn
-
