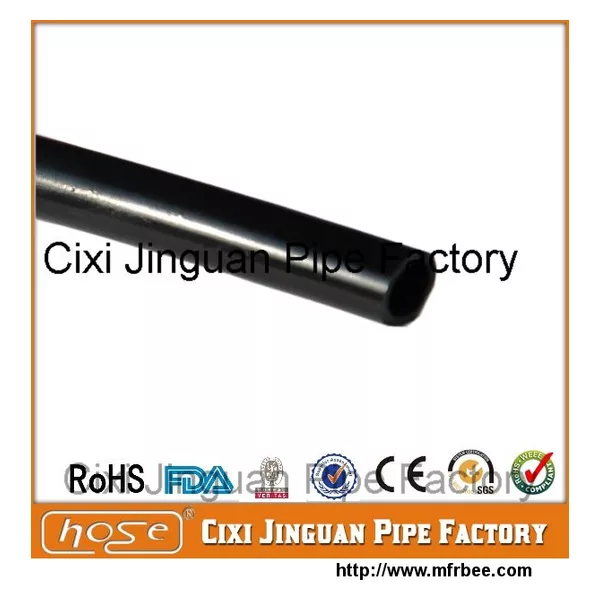

Black Vinyl Tube,Electric PVC Casing,PVC Wire Casing
Product sourcing details
- Place of Origin
- China
- Application
- Convey water,oil,weak chemical and other liquid
- Characteristic
- Lightweight,flexible,no smell,non-toxic,food/medical grade
- Color
- Black or according to customer's requirements
- Price Terms
- FOB,CIF,CNF
- Main Export Market
- America,Peru,Russia,Africa,Southeast Asia,Australia etc.
- Packaging
- PE plastic film,braided bag,carton or according to your requirements
Supplier: Cixi Jinguan Pipe Factory
Purchasing information
- Minimum order
- 5000
- Lead time
- 30 Days
Please confirm with the supplier: Model / reference, Key specifications / compatibility, Samples, Export markets, Supply capacity.
Specifications
Black Vinyl Tube,Electric PVC Casing,PVC Wire Casing
Detail:
1.Application:Widely used for conveying water,oil,weak chemicals and other liquids under low pressure condition in foodstuff,sanitary,industry,agriculture and aquatic animals equipment etc.
2.Tube:Made from non-toxic clear flexible pvc
3.Characteristics:Flexible,transparent and corrosion resistant with applications are widely
4.Temperature range:-5℃~+65℃
Specification:
1.Inside diameter
inch:1/4",5/16",3/8",1/2",5/8"
mm:6;8;10;12;15
2.Outside diameter(mm):8;10;12;15;18
3.Wall(mm):1.0;1.0;1.0;1.5;1.5
4.Working pressure(Mpa):0.15;0.15;0.15;0.1;0.1
5.Burst pressure(Mpa):0.45;0.4;0.4;0.3;0.3
6.Length max.(m):100;100;100;50;50
7.Weight(kg/m):0.029;0.037;0.045;0.083;0.101
8.Packing measurement D*H(mm):380*110;400*100;420*110;120*120;420*130
1.Application:Widely used for conveying water,oil,weak chemicals and other liquids under low pressure condition in foodstuff,sanitary,industry,agriculture and aquatic animals equipment etc.
2.Tube:Made from non-toxic clear flexible pvc
3.Characteristics:Flexible,transparent and corrosion resistant with applications are widely
4.Temperature range:-5℃~+65℃
Specification:
1.Inside diameter
inch:1/4",5/16",3/8",1/2",5/8"
mm:6;8;10;12;15
2.Outside diameter(mm):8;10;12;15;18
3.Wall(mm):1.0;1.0;1.0;1.5;1.5
4.Working pressure(Mpa):0.15;0.15;0.15;0.1;0.1
5.Burst pressure(Mpa):0.45;0.4;0.4;0.3;0.3
6.Length max.(m):100;100;100;50;50
7.Weight(kg/m):0.029;0.037;0.045;0.083;0.101
8.Packing measurement D*H(mm):380*110;400*100;420*110;120*120;420*130
