Specifications

1.long fiberglass in non-woven
2.large ventilation quality
3.small resistance
4.high efficiency dust arrestance

Speciality

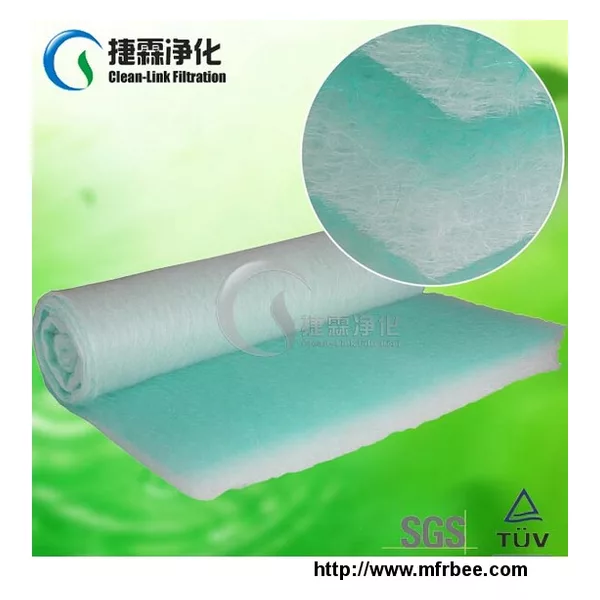

• Gradient Density Structure; the windward side is green, the leeward side is white.

• Made of long fiberglass in non-woven way, large ventilation quantity, small resistance, good efficiency of the dust arrestance for the over-spray.

• It is applied to the superficial spray coating high quality painting-spray filtration, high dust catching, specially, PA-50/60/PA-100 is suitable for using heat recovery system

• High strength fiberglass increasing structure; the windward side is green ,the leeward side is white.

• The low compression performance maintains its outlook,which is completely useful for the filtration fibre to keep the oil mist and the dust

• Nonflammability, heat resistance 170℃

• The compression packing may save the fare and the storage space in the transportation. After decompression, it will regain its original condition

• Outer frame may choose the paper frame , the galvanization iron frame, or aluminium alloy frame.

Specification

Model	PA-50/60	PA-100
Weight	240 g/m2	320 g/m2
Filter efficiency	92%-96%	97%-99%
Initial resistance	15Pa	20Pa
Final resistance	250Pa	280Pa
Air velocity	0.7-1.5m/s	0.7-1.75m/s
Dust holding capacity	3200-3600 g/m2	3600-4900 g/m2
Maximum temperature	170℃	170℃
Normal thickness	50/60mm	100mm

Company: Guangzhou Clean-link Filtration Co.,ltd
Country: China (Mainland)
Business Type: Specializing in Air Filter for sevaral years and engaged in R&D,Production, sales
Founded Year: 2007
Address: No.14 Guixiang Street East Tianxin ,Taihe,Baiyun,Guangzhou,China
Contact: Hardy Huang
