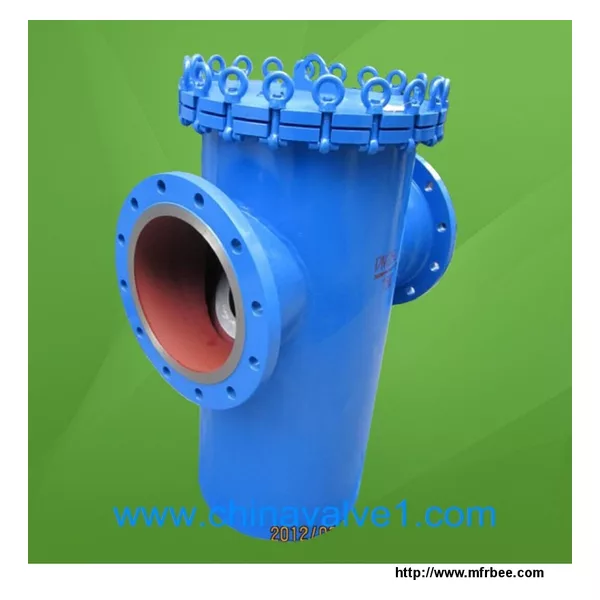

Strainer,Simplex Basket Strainer

Flanged T type strainer

• Y Type Strainer


  Product: Y Type Strainer Pressure Rating: 1.0-4.0Mpa Specification: DN15-DN500 Material: GS-C25,CF8,CF3 Standard flanges: DIN

• Welded T type strainer


  Product: T type strainer It is synonymous with its name. It is to remove physical impurities from liquids, steam, gases etc. It is available in screw and flanged construction. Available in forged, cast and fabricated construction. It is used for inline application.

• Flanged T type strainer


  Flanged T Type Strainer is designed by flanged, socket and butt welded connection mode can save the tubing material

• Socket Welded and Butt Welded Y Type Strainers


  Socket and Butt welded Y type strainers are suitable for high pressure pipeline.

• SB 23 Simplex Basket Strainer


  SB 23 Simplex Basket Strainer is suitable for high viscous fluid and large circulation needs

• SB23-16C Basket Strainers









  • Characteristics
  • It’s suitable for high viscous fluid and large circulation needs
  • It’s suitable for the mixtures of different objects which need large filtration area.
  • You can choose the material, connection mode according to the use purpose.
  • Performance Parameters



  Type		SB23-16C
  Applicable Fluid		Water, Oil, Steam
  Applicable Inlet Pressure		1.6~2.5Mpa
  Applicable Temperature		Max.T. 220℃
  Connection Mode		RF Flanged
  Hydrostatic Test		2.4-3.8Mpa
  Material	Body	Steel Pipe, Stainless Steel Pipe
  	Cover	Carbon Steel, Stainless Steel
  	Screen	Stainless Steel(304)
  	Gasket	Asbestos Sheet





  • Dimension drawing
