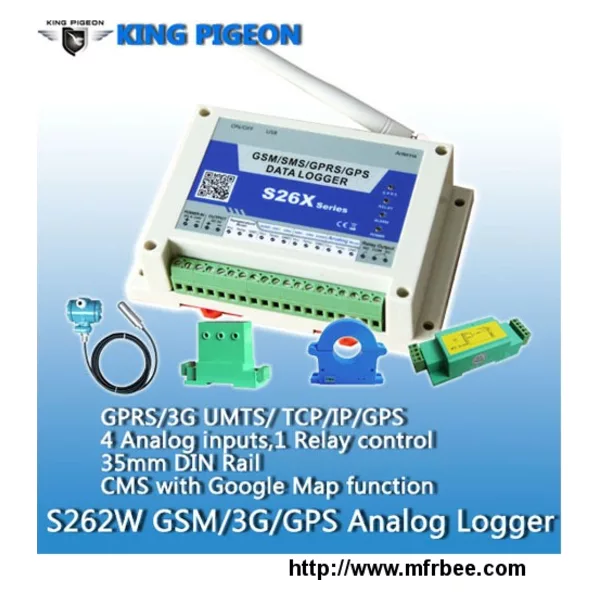

GSM GPRS 3G Data Logger
Product Quick Detail
- China
- guangdong
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
The GPRS 3G Logger is special for remote monitoring temperature, humidity, current, voltage, fuel level, pressure, air condition parameters and so on, it can setup ultra-high—high, low—ultra-low 4 alarm level. and 1 digital relay output can control via free charge call, SMS or GPRS. Also, the internal memory can save the historical for half a year for review. It provides daily report, schedule upload, event upload by the GPRS/3G to monitoring center or by SMS to the user mobile phone directly.
1. Programmable by SMS Commands or PC Configurator via USB;
2. 2 alternate Server via GPRS/3G wireless network, supports IP address and DNS;
3. Compatible with KingCenter CMS-02 via GPRS(Google map), and CMS-01 through SMS;
4. GP Quad-Band GSM Frequency,3G, supports SMS and Voice and GPRS/3G communication;
5. S module is optional, measure the Longitude,Latitude,Speed,Direction ;
6. Daily report, schedule upload, event upload;
7. 6 authorized phone numbers, each number can be used to receive SMS or both, also can be used for dial to switch ON/OFF the relay outputs, inquiry status;
8. One digital outputs (dry contact, NO/NC) with relay rating 10A/240VAC for connecting the switch of the air conditioner or machines, the outputs can setup as always ON, Pulse output, by SMS, authorized phone number dial in, and alarm events;
9. 4 inputs, 12bits, can setup interval time, interval value, ultra-high, high, low, ultra-low alarm can active the relay outputs and send programmable SMS to authorized phone numbers or via GPRS to monitoring center;
10. Internal memory, can save the historical data for review;
11. External AC Power monitoring, AC On/OFF will send SMS to authorized phone numbers;
12. Rechargeable Backup Battery inside can last 18hours;
13. Standard DIN Rail 35mm installation or outdoor enclosure.
- Country: China (Mainland)
- Business Type: 生产厂家
- Market:Africa,Asia,Americas,Emerging Markets,Europe,European Union,Middle East,Oceania
- Founded Year:2005
- Address:Floor2,A building 14,Fuqiao third industrial zone,Qiaotou community Fuyong Town Bao\\\\\\\'an District,Shenzhen,518103,China:
- Contact:Sam Ma
