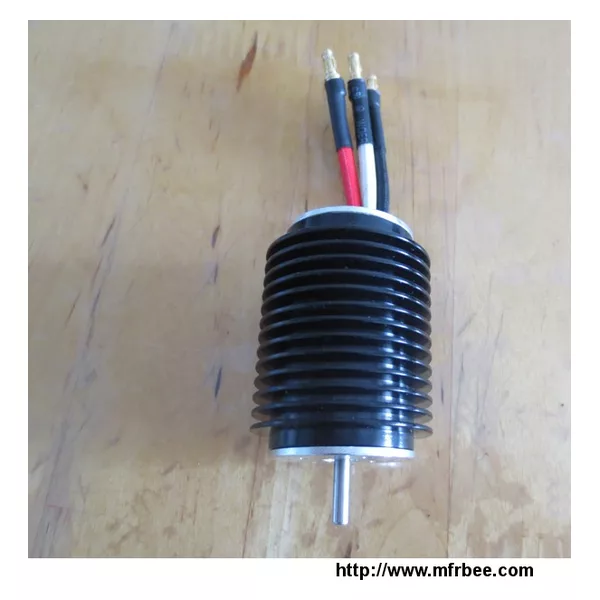

brushless DC motor for UAV
Product Quick Detail
- Place Of Origin
- China (Mainland)
- Packaging
- cartons
- Delivery
- 20 working Days
Specifications
|
Motor Diameter: |
35.8mm |
| Motor Length: | 49mm |
| Shaft Diameter: | 3.17mm |
| Shaft Length: | 12mm |
| Weight: | 168g |
| Mounting Hole Size: |
M3, pitch 16mm M3, pitch 19mm |
| Mounting Hole Depth: | 4.5mm Max. |
| Order Name | RPM/V | No-load Current (7.4V) | Max. Amps | Resistance | Max. Volt(V) |
| B28-47-06S-FIN | 6500 | 4.8A | 70A | 0.0053 | 9.2 |
| B28-47-07S-FIN | 5600 | 3.7A | 60A | 0.0073 | 10.7 |
| B28-47-08S-FIN | 4900 | 2.8A | 50A | 0.0095 | 12.2 |
| B28-47-09S-FIN | 4300 | 2.4A | 45A | 0.0119 | 13.9 |
| B28-47-10S-FIN | 3900 | 2.2A | 40A | 0.0148 | 15.3 |
| B28-47-11S-FIN | 3600 | 1.9A | 38A | 0.0179 | 16.6 |
| B28-47-12S-FIN | 3300 | 1.6A | 35A | 0.0213 | 18.2 |
| B28-47-13S-FIN | 3000 | 1.4A | 32A | 0.0248 | 20 |
| B28-47-14S-FIN | 2800 | 1.2A | 30A | 0.0288 | 20 |
| B28-47-15S-FIN | 2600 | 1.1A | 27A | 0.0330 | 20 |
| B28-47-16S-FIN | 2400 | 1.0A | 25A | 0.0385 | 20 |
| B28-47-17S-FIN | 2300 | 1.0A | 25A | 0.0426 | 20 |
| B28-47-19S-FIN | 2000 | 0.8A | 20A | 0.0532 | 20 |
| B28-47-22S-FIN | 1800 | 0.6A | 18A | 0.0715 | 20 |
| B28-47-24S-FIN | 1600 | 0.5A | 16A | 0.0848 | 20 |
| B28-47-26S-FIN | 1500 | 0.4A | 15A | 0.0996 | 20 |
- Country: China (Mainland)
- Business Type: Manufacturer,Trading Company
- Market:Europe,Americas,Oceania,European Union,Asia,Emerging Markets
- Founded Year:2009
- Address:中国湖南株洲天元区保利大厦
- Contact:kitty xu
